1N2326 Diode Replacement, a Russian MP20 Transistor

Moderators:
Ernst Erb Jacob Roschy Bernhard Nagel

Please click the blue info button to read more about this page.
Forum » Valves / tubes - Semiconductors » Semiconductors » 1N2326 Diode Replacement, a Russian MP20 Transistor

Omer Suleimanagich
Omer Suleimanagich

USA  Articles: 429
Schem.: 3
Pict.: 56
17.Feb.18 05:53

Count of Thanks: 5
Reply  |  You aren't logged in. (Guest)   1

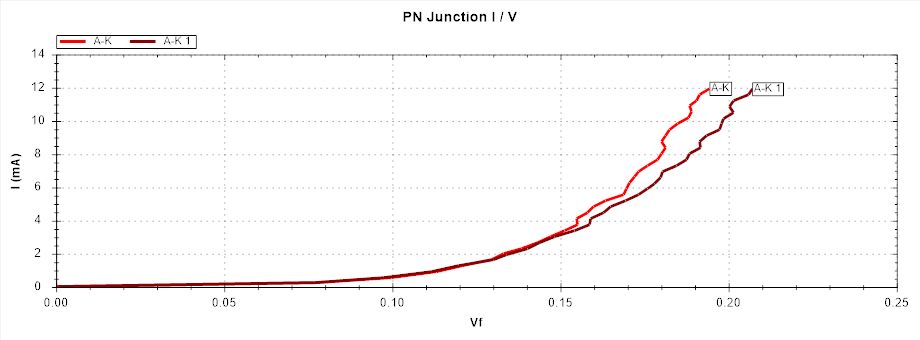

It has been well documented that a transistor can be used as diode   In this graph, you can clearly see that a 1N2326 germanium diode has very similar characteristics in dropping voltage behavior when compared with a Russian MP20 germanium russian transistor

Red is is the 1N2326  Brown is the MP20 transistor (collector and base are tied together as the cathode
