6HB6 (6HB6) Suppressor action

ID: 194022
This article refers to the component: To the tube/semiconductor

6HB6 (6HB6) Suppressor action
06.Jul.09 00:00
2894

Joe Sousa (USA)
Editor
Articles: 670
Count of Thanks: 4
Joe Sousa

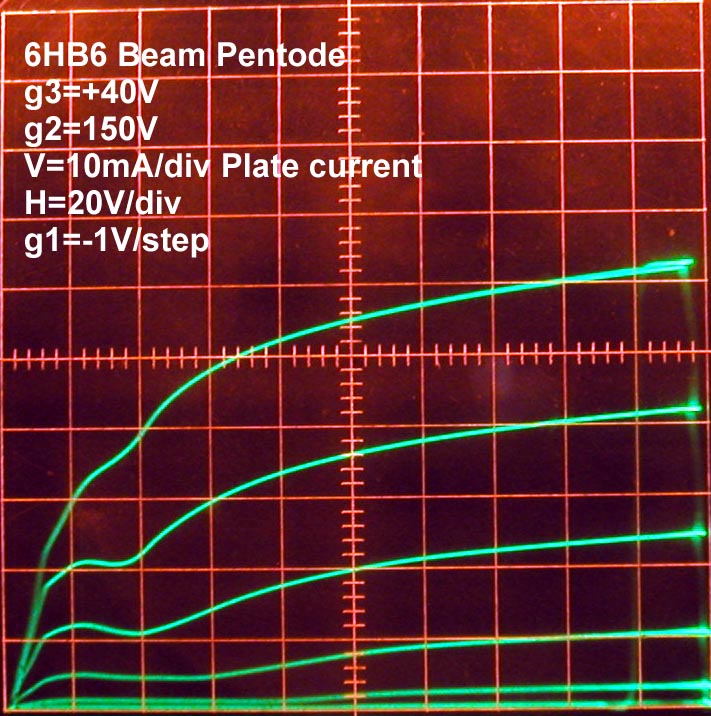

The following plots show the effect of bias voltage at the suppressor grid g3.

Further discussion of g3 action can be found at:

http://www.radiomuseum.org/forum/app4120_gitter_1_3_parallel.html

http://www.radiomuseum.org/forum/6f6eg_6f6eg.html

Right-click and view or save these plots for higher resolution.
