I have a working Magnavox R3B Horn speaker which is missing the Instructions on the base.

If anyone is able to supply me with a scan or photo of the instructions sheet on the base, I would greatly appreciate it.

kind regards

Lindsay Shepherd

Reiner Scholz
Reiner Scholz

D  Articles: 292
Schem.: 1
Pict.: 336
01.May.18 11:26

Count of Thanks: 4
Reply  |  You aren't logged in. (Guest)   2

Hi, Lindsay

I owned this speaker long ago and maybe there had been an instruction underneath. I do not remember. Actually I just found a common companies address and a listing of patent numbers.

I keep on sarching

Regard

Reiner



EM: Dead link deleted. Please avoid ever external links

This article was edited 01.Jan.20 16:32 by Eilert Menke .

Lindsay Shepherd


AUS  Articles: 13
Schem.: 42
Pict.: 2500
01.May.18 19:49

Count of Thanks: 4
Reply  |  You aren't logged in. (Guest)   3

Reiner,

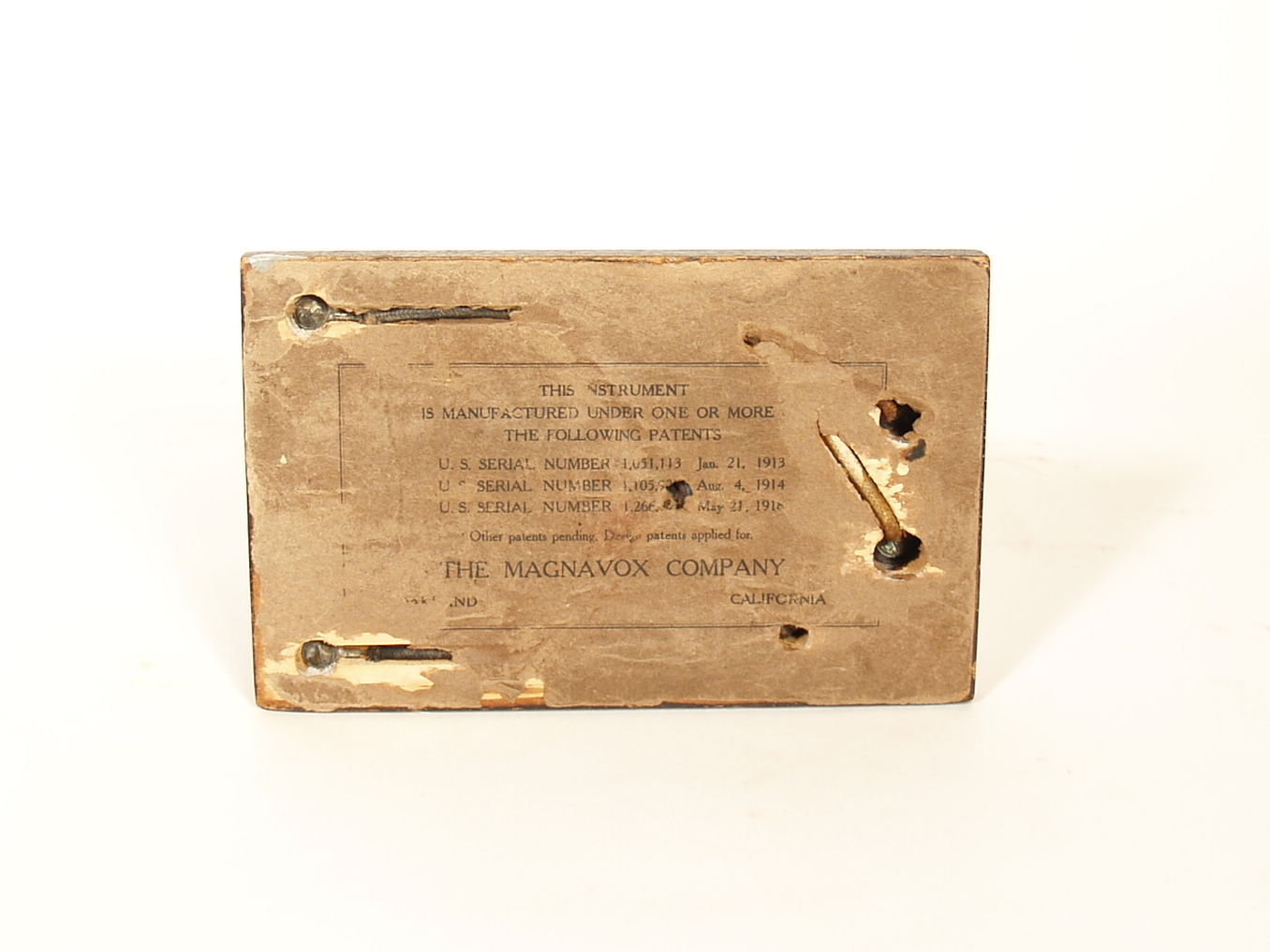

Thank you for your help. I did see that R3B base label for sale on Ebay.

It is different from another R3B's base label sold on Ebay in 2015.

So I am perplexed as to which may be the original.

kind regards

Lindsay Shepherd



Attachments:

Stuart Schankman
Stuart Schankman

USA  Articles: 9
Schem.:
Pict.: 62
01.Jan.20 02:13

Count of Thanks: 3
Reply  |  You aren't logged in. (Guest)   4

I have a Magnavox Type R3 Model B with a base lable, but the lable does not contain instructions.  I only lists patents.  I am looking for the audio transformer for that model.
