minerva: 452; Minerphon

I notice there are two variants of this model - one has 5 valves ( 2 x ECH21, EBL21, AZ21, EM4) -the other has six valves ( ECH21, 2 x EF22, EBL21, AZ21, EM4) the circuit diagram shown for this model is the 5 valve variant whereas the valve line-up shows the six valve version.   The six valve verison has a larger physical cabinet (and was much more expensive when launched).   I am working on this larger verison but cannot find a correct circuit diagram.   If anyone knows where such a diagram might be found it would be very helpful for me.

Many thanks, John

To thank the Author because you find the post helpful or well done.

Hallo John,

To thank the Author because you find the post helpful or well done.

Thanks you Wolfgang,

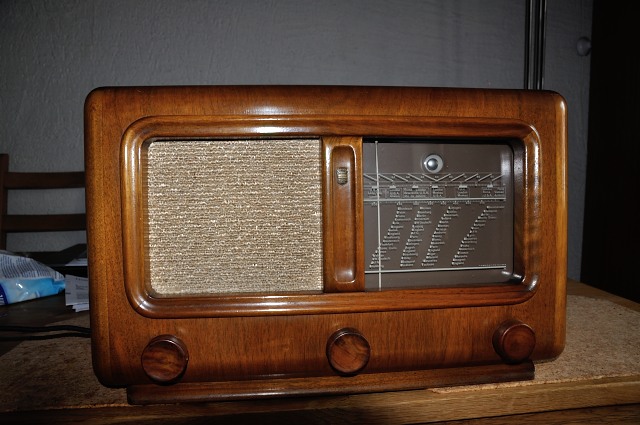

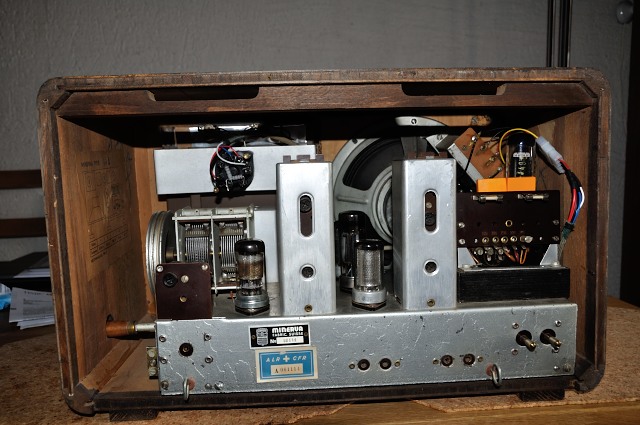

Here are some photos.   Also details of the restore work are on my YouTube channel (Zone1242).  The set is now wokring but I would love to find a correct diagram to complete more detailed work on the set.

Best Regards,  John
