Dear radio friends



I'm trying to recover an AT Wather model 137 Cathedral Cabinet style radio I came across a problem, the resistors have unusual codes, that is, some have two colors, others with one and the value of some for example R4 : .5 Ohm on the contrary and R15= .1 Ohm on the contrary, (Ω ), can any of your friends help to read the real value of these resistors, or if there is any common factor of multiple or divisible depending on what appears in the diagram?

Please see this schematic scrap I prepared



A big thank you in advance

From Portugal

Júlio Branco



/forumdata/users/3656/AT_Wather_137.jpg





Attachments:

This article was edited 12.Jul.22 18:06 by Júlio Branco .

Tomasz Szczesniak


PL  Articles: 85
Schem.: 88
Pict.: 1182
12.Jul.22 17:36
Reply  |  You aren't logged in. (Guest)   2

Most probably this values are in Megaohms (MΩ). Notice the Ohm symbol on this resistors - is printed upside down: ℧.

Rolf Beckers
Rolf Beckers
Editor
D  Articles: 200
Schem.:
Pict.: 664
13.Jul.22 14:02
Reply  |  You aren't logged in. (Guest)   3

Dear Julio,

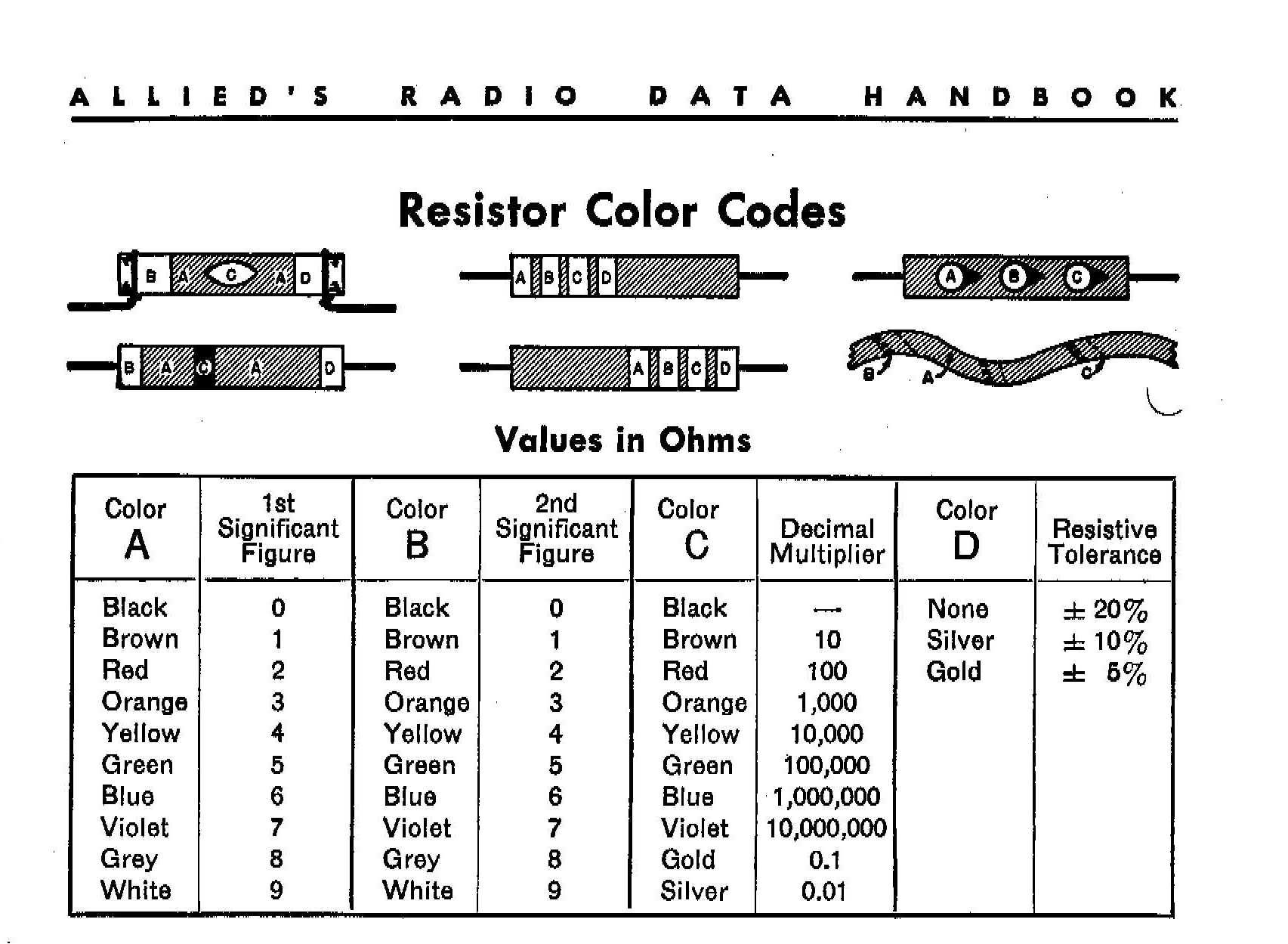

In most old diagrams resistors are either in single Ohm e.g. 100 = 100 Ohm or 25,000 = 25kOhm. Or they come with a leading dot in MegaOhm .5 = 0.5 MOhm. The numbers of the color code are similar as today, but there are no rings, see attached table. Most old resistors are colored as shown left above.

Regards,

Rolf

Attachments:

Lars-G. Lundelin


FIN  Articles: 138
Schem.: 31
Pict.: 111
13.Jul.22 16:35
Reply  |  You aren't logged in. (Guest)   4

Atwater Kent used their own color codes for certain resistor values. You will find codes in the following

link:

atwaterkent.info/TechData/Images/SM3501_013.gif



Regards

Lars-G
