RFT Beethoven restoring

ID: 142745
This article refers to the model: Beethoven II (2) 1142.002 ab Ser.Nr.570001 Diskantschalter am Höhenregler (Sopran) (Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG)

RFT Beethoven restoring
14.Jun.07 00:11
0
Giovanni Saoner (I)
Articles: 23
Count of Thanks: 9
Hello, I buyed recently a RFT Beethoven II and I am restoring it.
I needs ito know the scheme of the tuning FM ropes because it lacked and I have some difficulty to reconstruct the exact scheme.

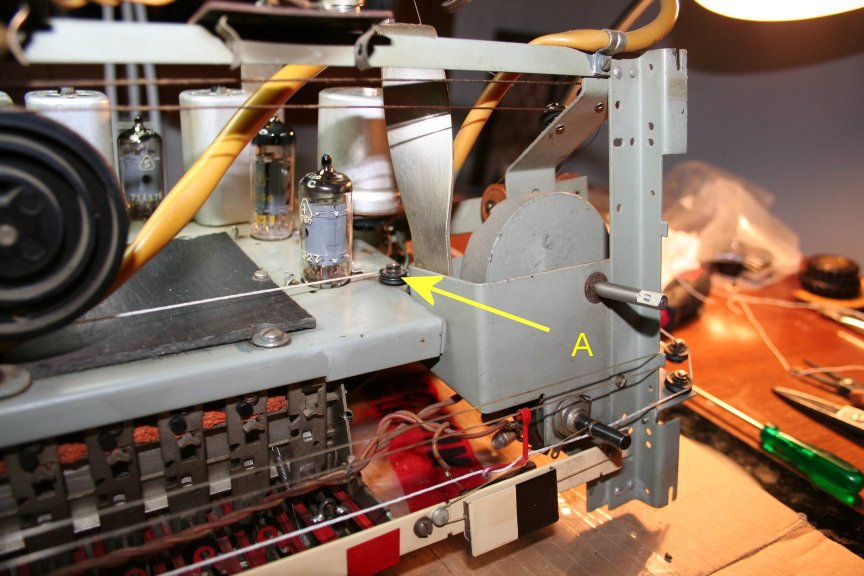

For to be correct the rope always exits from the guide A and I don't know if the guide B was used?
Someone can help me?
Thanks Giovanni - Venice
Attachments:

To thank the Author because you find the post helpful or well done.

 2
Seillauf FM Antrieb
14.Jun.07 14:59
Jens Dehne (D)
Editor
Articles: 659
Count of Thanks: 15

Hallo Giovanni Saoner,



vielleicht hilft dieses Bild schon weiter?





Viel Erfolg und Grüße aus Erfurt!

Jens Dehne

To thank the Author because you find the post helpful or well done.

 3
Re: Seillauf FM Antrieb
14.Jun.07 23:16
Giovanni Saoner (I)
Articles: 23
Count of Thanks: 10
Hello Jens,
thank you very much. With the help of your image the tuning now work perfectly.
Greeting from Venice
Giovanni

To thank the Author because you find the post helpful or well done.

 4
Incorrect rope turns of AM drive
15.Jun.07 00:34
Giovanni Saoner (I)
Articles: 23
Count of Thanks: 7
Hello, I need a little help also for the rope of AM drive.

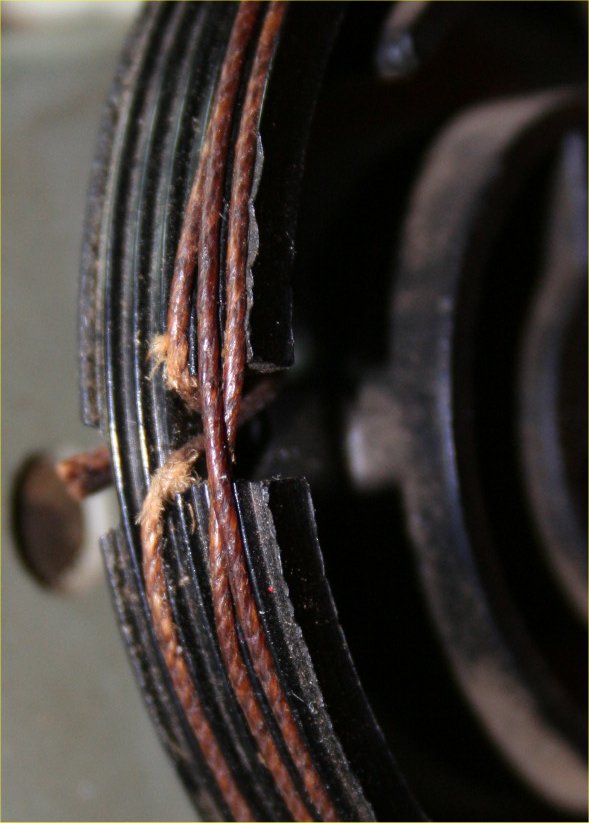

This is the rope around the capacitor I found when I bougth the radio.



But I think there are too many rope turns in fact the rope overlaps.
Can you to publish in this forum two photos like mine of yours radio?
Greetings Giovanni

To thank the Author because you find the post helpful or well done.

 5
Seillauf FM Antrieb
15.Jun.07 08:59
Jens Dehne (D)
Editor
Articles: 659
Count of Thanks: 15

Hallo  Giovanni,



hier nun ein Foto vom Antriebsrad AM Drehkondensator.





Der Skalenzeiger und Drehkondensator steht etwa in der Mitte.



Viel Erfolg auch hier und Grüße!



Jens Dehne

To thank the Author because you find the post helpful or well done.

 6
Greetings
16.Jun.07 02:21
Giovanni Saoner (I)
Articles: 23
Count of Thanks: 7
Thank you very much Jens,
now all the tunings work s perfectly.
I'm a Graetz and Stern-Rochlitz fan, from long long time. Your personal website was the first german website I knowed about radio restoration and particularly Graetz, and it's still today a reference for me.
Thank you for your work.
I have some images missing on your website, made from myself of course from my collection.
For example images of Stereo Unit 250 F.
If you want I can send it to you by mail.
My personal address is: info@casaparadiso.it
Greetings from Venice
Giovanni
