telefunken: 6; Opus - Pyramid capacitor?

Moderators:
Martin Renz Ernst Erb Vincent de Franco Martin Bösch Mark Hippenstiel Bernhard Nagel Dietmar Rudolph Otmar Jung Heribert Jung Eilert Menke

Please click the blue info button to read more about this page.
Forum » Radios and other type of sets (Physics) etc. » MODELS DISPLAYED » telefunken: 6; Opus - Pyramid capacitor?

Jamie Nickel


USA  Articles: 4
Schem.:
Pict.: 13
23.Feb.14 23:18

Count of Thanks: 9
Reply  |  You aren't logged in. (Guest)   1

I'm working on re-capping a Telefunken Opus 6 and I came across a Pyramid brand capacitor that isn't listed in the parts list.   It appears to be a big electrolyitc capacitor 16uF - 450V that's mounted on top of the chassis by the transformer. Here's a picture the capacitor in question.

Does anyone know if this was the correct capacitor installed by the factory? I was wondering if someone may have replaced the original capacitor with the wrong size since I couldn't find this one in the parts list.  Thanks!



Attachments:

Bruno Gandolfo-Canepa
Bruno Gandolfo-Canepa

RCH  Articles: 128
Schem.: 58
Pict.: 498
25.Feb.14 21:11

Count of Thanks: 11
Reply  |  You aren't logged in. (Guest)   2

Hello Jamie,

I have never saw one elko cap like this inside a German radio. It is not one original replacement for sure.

Cordially, Bruno.

Jamie Nickel


USA  Articles: 4
Schem.:
Pict.: 13
25.Feb.14 21:44

Count of Thanks: 6
Reply  |  You aren't logged in. (Guest)   3

Thanks for the reply Bruno!  Do you know if the 16uF - 450V is the right value capacitor for this location? The radio works now, but the sound starts to fade after about 10 minuites and the radio warms up.

Sincerely,

Jamie

Bruno Gandolfo-Canepa
Bruno Gandolfo-Canepa

RCH  Articles: 128
Schem.: 58
Pict.: 498
25.Feb.14 22:12

Count of Thanks: 12
Reply  |  You aren't logged in. (Guest)   4

You are wellcome Jamie,

I do not have that radio. On the model's page you have all the technical information: the circuit, the parts list and the 3-D diagram to identify the capacitor over the output transformer. Then you can make the appropriate replacement.

Respectfully, Bruno.

Jamie Nickel


USA  Articles: 4
Schem.:
Pict.: 13
26.Feb.14 21:40

Count of Thanks: 8
Reply  |  You aren't logged in. (Guest)   5

The diagram shows C82, which correspondes to a 2200pF cap on the parts list. The aftermarket 16uF Pyramid cap is installed in this position. The Pyramid cap looks old too, so it's probably been in there a while.  Whoever installed this aftermarket cap wasn't even close in choosing the correct size!

Thank you!

Jamie

This article was edited 26.Feb.14 21:56 by Jamie Nickel .

Ruben Garcia Bayon


E  Articles: 53
Schem.: 52
Pict.: 63
02.Mar.14 21:57

Count of Thanks: 4
Reply  |  You aren't logged in. (Guest)   6

Hello



I think this cap is not original too.

Photos are not clear, but may be this "Pyramid" cap are put in parallel with C5? . C5 is located below on your photo, 50uF. This could be done by somebody to somewhat "improving" the sound. C5 is in series with the tweeters.

And I think that C82 are in your photo too, just between the 50uF and the piramid.

 May be, you could tell us where this cap is conected. (vg: positive to ping xxx of xxx, ...)



Regards



Omer Suleimanagich
Omer Suleimanagich

USA  Articles: 428
Schem.: 3
Pict.: 56
16.Mar.14 08:55

Count of Thanks: 9
Reply  |  You aren't logged in. (Guest)   7

Please follow the radio's schematic, for capacitor replacement.

The most important thing in this radio , is to replace the selenium rectifier, with a silicon bridge rectifier and a dropping resistor.  Something that has been very well explained on this forum already, on other threads.

Make sure to replace all paper capacitors and electrlytic capacitors, and then seeing if any resistors are questionable.



Best



This article was edited 16.Mar.14 09:46 by Omer Suleimanagich .

Jamie Nickel


USA  Articles: 4
Schem.:
Pict.: 13
04.Apr.14 23:32

Count of Thanks: 11
Reply  |  You aren't logged in. (Guest)   8

Just wanted to provide everyone an update on the Opus 6. I ended up replacing all the electrolytic and paper caps. The radio sounds beautiful now and I see why so many people are impressed by the way they sound.

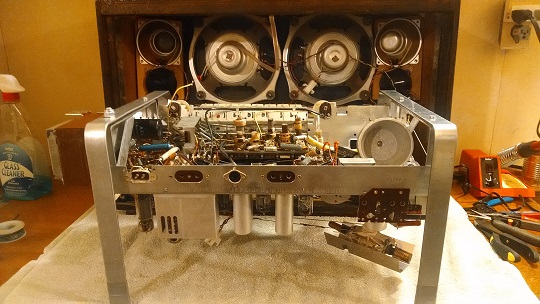

An interesting observation I had, was someone installed that Pyramid capacitor that wasn't even listed in the schematic or parts manual, so I removed it from the circuit.  Also, before I had finished replacing all the underside caps around the EL84 tubes, the radio would sound great for about 10 minutes, then start to sound "farty", the bass would become punchy sounding.  During this time, I noticed the rear-most EL84 tube would run much hotter than the front-most EL84 tube.  Well, replacing all the caps connected to these tubes on the underside resolved that issue.  Here's pics of the new caps installed and the stand I made to hold the chassis upside down.

Attachments:

Omer Suleimanagich
Omer Suleimanagich

USA  Articles: 428
Schem.: 3
Pict.: 56
05.Apr.14 07:48

Count of Thanks: 7
Reply  |  You aren't logged in. (Guest)   9

Please check the selenium rectifier, if it is running VERY hot, and check to see what voltage it is kicking out in DC.  These rectifiers are known to be bad, and a bad one, can damage your transformer!
