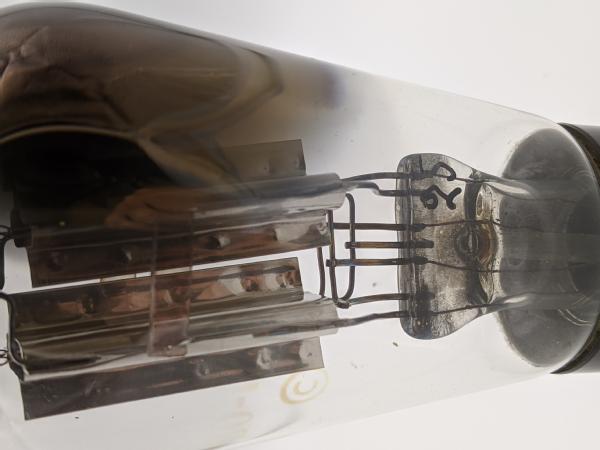

The tilted structure is somewhat unique as are the pins. And it appears that "25" is written on the pinch which might suggest that it is an RGN2504 clone.

Does anyone have any information on this tube?

Thanks much. :)









Nikolaus Löwe
Nikolaus Löwe

D  Articles: 174
Schem.: 105
Pict.: 961
31.May.20 08:00

Count of Thanks: 1
Reply  |  You aren't logged in. (Guest)   2

Dear Ken,

the appearance of the tube, plates in particular, remind me of the Hoges (= Hochohm-Gesellschaft) tubes, like this one.

I believe I can see the remains of markings on the glass envelope of the tube, namely a c in a circle. Markings like these are hard to photograph, but could you try  to read the markings, and let us know? Sometimes it gets easier after gently breathing on the glass!

Yours,

Nikolaus Löwe

Ottó Jancsek
Ottó Jancsek

H  Articles: 19
Schem.:
Pict.: 10
31.May.20 19:51

Count of Thanks: 1
Reply  |  You aren't logged in. (Guest)   3

Hello Ken,

What is we know about this tube? Is the base Europe 4 pin or something else? Vf=4V. Is the filament working? The tilted structure can be caused by overload?

Best regaerds,

Otto



Ken Shellberg


USA  Articles: 20
Schem.:
Pict.: 0
31.May.20 20:17

Count of Thanks: 1
Reply  |  You aren't logged in. (Guest)   4

Hello Nikolaus

As you suggest, I will try to make out the remains of the markings on the glass. And I will also try to compare what I can see to more clear markings on other Hoge tubes.

Thank you.

Ken

Ken Shellberg


USA  Articles: 20
Schem.:
Pict.: 0
31.May.20 20:26

Count of Thanks: 1
Reply  |  You aren't logged in. (Guest)   5

Hello Otto,

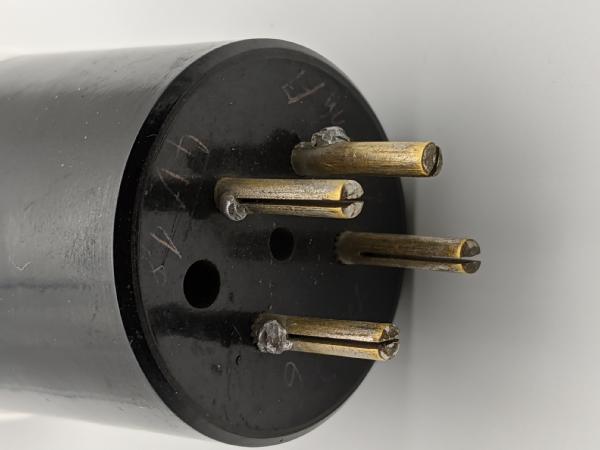

The tube was sold to me as an RGN2504 clone. And yes, it has the European B-4 base and a 4-volt heater.

I have an amp which can run 4-volt rectifiers, and in that amp, this rectifier powers up and runs the amp normally. So it seems to me that it works fine.

As to the tilted structure, my assumption is that it was deliberately desgned and built this way, but as I am not an engineer, I certainly don't know for sure.

Thank you

Ken

Ken Shellberg


USA  Articles: 20
Schem.:
Pict.: 0
31.May.20 22:39

Count of Thanks: 1
Reply  |  You aren't logged in. (Guest)   6

Hello Nikolaus

As best I can make the markings out, it looks like

"BO - 116"

and just below, a "c in a circle"

Is this helpful?

Thank you,

Ken

Otmar Jung

Editor
D  Articles: 252
Schem.: 2430
Pict.: 4499
31.May.20 23:05

Count of Thanks: 1
Reply  |  You aren't logged in. (Guest)   7

Just an idea: ВО-116

Ken Shellberg


USA  Articles: 20
Schem.:
Pict.: 0
31.May.20 23:46

Count of Thanks: 1
Reply  |  You aren't logged in. (Guest)   8

So it may well be a Soviet tube? I am certainly surprised!

Thank you.

Ken



Ken Shellberg


USA  Articles: 20
Schem.:
Pict.: 0
31.May.20 23:52

Count of Thanks: 1
Reply  |  You aren't logged in. (Guest)   9

Would you like me to upload a picture of my tube to the BO-116 page?

Jacob Roschy
Jacob Roschy
Moderator
D  Articles: 1666
Schem.: 17
Pict.: 68
01.Jun.20 09:42

Count of Thanks: 1
Reply  |  You aren't logged in. (Guest)   10

Another idea: ВО-188. Note the pin soldering joints !

This article was edited 01.Jun.20 09:45 by Jacob Roschy .

Ottó Jancsek
Ottó Jancsek

H  Articles: 19
Schem.:
Pict.: 10
01.Jun.20 13:58

Count of Thanks: 1
Reply  |  You aren't logged in. (Guest)   11

Hello Ken,

Please measure the filament current. It is different for BO116 and BO188

Best regards,

Otto

Ken Shellberg


USA  Articles: 20
Schem.:
Pict.: 0
01.Jun.20 15:02

Count of Thanks: 1
Reply  |  You aren't logged in. (Guest)   12

Hello Otto,

"BO-116" is quite clear on the glass. It's definitely not "BO-188".

And unfortunately, I do not have the necessary test equipment to measure filament current. Sorry. :(

Thanks,

Ken
