Hello everybody.

Has anybody ever seen this radio?

I don't know the manufacturer nor the model.

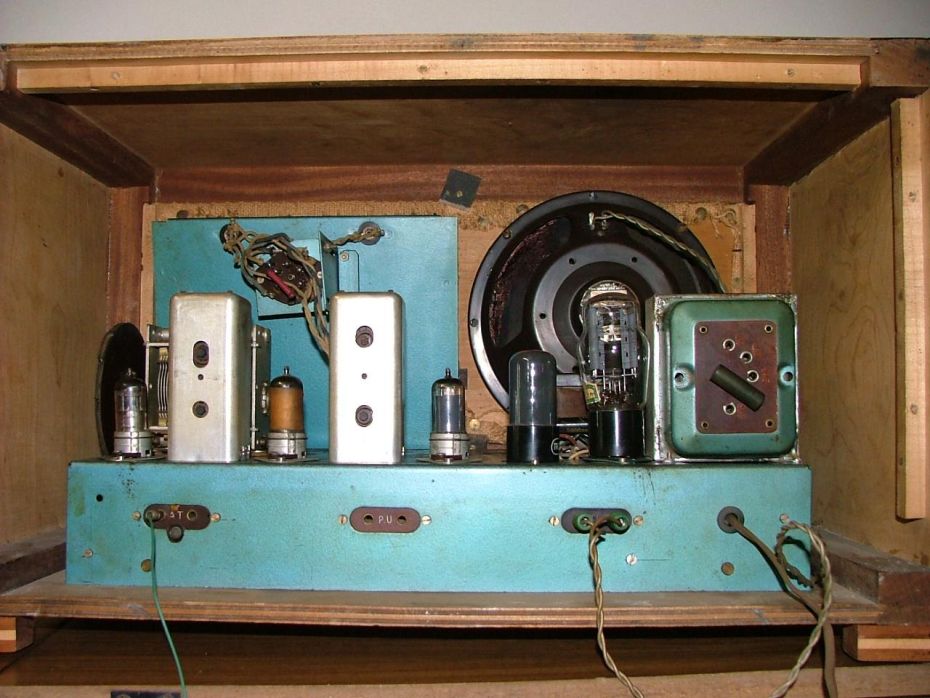

Probably it is belgian, it is equiped with these tubes: ECH41; EF41; EBC41; 6V6GT; 80; 6E5.

Knobs and supply transformer aren't original.

I don't have the rear.

Thanks for attention.

Valentino Tancredi

Attachments:

Zenonas Langaitis
Zenonas Langaitis

LT  Articles: 78
Schem.: 655
Pict.: 4110
27.Aug.09 19:10

Count of Thanks: 3
Reply  |  You aren't logged in. (Guest)   2



May mind  Radio  made  in France ..

GO = grandes ondes = long wave

PO = petites ondes = broadcast band (we call it -  medium wave)

OC = ondes courtes = shortwave

Zenonas

Valentino Tancredi


I  Articles: 28
Schem.: 12
Pict.: 276
28.Aug.09 15:06

Count of Thanks: 7
Reply  |  You aren't logged in. (Guest)   3

Thanks.

I guess it is not french because

"Emetteurs

Locaux

Belges

Lokale

Zenders"

is written on the tuning dial.

Is it a french product for Belgium or a belgian one?

Valentino

Jacob Roschy
Jacob Roschy
Editor
D  Articles: 1742
Schem.: 17
Pict.: 68
28.Aug.09 15:44

Count of Thanks: 2
Reply  |  You aren't logged in. (Guest)   4

Hello Valentino,

“Emetteurs Locaux Belges - Lokale Zenders" is probably a hint for a Belgian origin.

A detailed picture of the scale with legible inscription would be of great advantage for further idendification.

Jacob

Valentino Tancredi


I  Articles: 28
Schem.: 12
Pict.: 276
28.Aug.09 22:19

Count of Thanks: 2
Reply  |  You aren't logged in. (Guest)   5

Hello Jacob,

Detailed picture of the scale in the attached documents.

Thanks

Valentino

Attachments:

Jacob Roschy
Jacob Roschy
Editor
D  Articles: 1742
Schem.: 17
Pict.: 68
29.Aug.09 08:55

Count of Thanks: 2
Reply  |  You aren't logged in. (Guest)   6
ACEC ?

Hello Valentino,

this radio has some resemlance with models of the company ACEC, Atelier de Construction Electrique de Charleroi, see their model 530 for example.

It seems to be a peculiarity of ACEC to use adapting washers to match Rimlock tubes into a chassis punched for octal tubes.
On the other hand, the round IF cans on ACEC radios are different to the square IF cans in your radio.

Jacob

Valentino Tancredi


I  Articles: 28
Schem.: 12
Pict.: 276
02.Sep.09 11:25

Count of Thanks: 2
Reply  |  You aren't logged in. (Guest)   7

hello Jacob,

with J. Francois Bertrand's help (http://www.radiomuseum.org/forum/radio_inconnue.html) I can say that this radio is made in Belgium, even if most of components come from other countries.

Maybe it was assembled by ACEC a few times after world war 2 end, with makeshift components.

It works perfectly, that's the most important thing!

Anyway, thanks for your suggestions.

Best regards

Valentino
