zenith: (9-S-262 Ch=5905); 9S262 would like assistance

Is some one willing to assist me in troubleshooting my Zeinth 9s262, Shutter Dial. My background kind of goes like:  About 1963, I took tube radio repair in vocational high school just as transistors came on the scene and the demand for warm bodies for Viet-Nam draft soared. Since I had a rudimentary understanding of radio electronics, the decision was made to use those skillls in selecting my military career path which was of course engine mechanics. That never detered me from my path of radio collecting. Over the last 40 years I have maintained a collection which now numbers 95-100 radios and spring wound phonographs. I decided I would collect while I had the opportunity and as I neared retirement I would begin what I like to call "polishing" my collection. Which, after all of that, brings me to my point. Man, have I ever forgotten what I thought I knew about radio servicing. Most of the time, I'm lucky and find a bad tube or a melted capicator but not this time. I bought two Zenith consoles at a real good price, both in 7 or 8 out of 10 in quality. The 10s470 is great, looks to have been serviced by a Zenith dealer....all Zenith components plays and sounds new. The other is a 9s262 Shutter Dial. Initial tube checks showed the 6F6 Audio tube with extremely low emmision. I replace the 6F6 and now it overheats and will leave a blister if you touch it. Audio is very low no matter where the volume is....selectivity is marginal. A signal at the volume control indicates that the amp is working. If speaker is disconnected the tube won't overheat but will overheat on a known good speaker with the same load. The absolute worst is that someone has been in the set changing capacitors and I'm not sure where to start. Any guidence will be sincerely appreciated

To thank the Author because you find the post helpful or well done.

Hi Joe,

           Do you have the schematic? If not, download it from here: http://www.nostalgiaair.org/Resources/500/M0025500.htm

           The most likely cause of your problem is the audio coupling capacitor C16, .02mfd leaking DC voltage.

           Gary (Montreal)

To thank the Author because you find the post helpful or well done.

Good evening Gary,

I appreciate your assistance as well as your expertise to chase down this problem. I do have a schematic from the website you recommended. Capacitor C16 had been changed out prior to my ownership of the radio in question. I did disconnect one end and checked it for shorts with none indicated. A check on a capacitance meter showed it well within 20% of .02 mfd spec. Did I mention the 6F6 was dead when I started this project? I don't know whether it matters or not. Any additional suggestions will be sincerely appreciated.

Best regards,

Joe (Central Michigan, USA)

To thank the Author because you find the post helpful or well done.

Dear Joe,

try first to check the static bias conditions of the 6F6, since the excessive heat may be caused by an improper grid bias. You should find 16V or something more between cathode, pin 8, and control grid, pin 5; grid must be negative with respect to cathode. If the ciruit is not easily accessible, you can wrap two pieces of wire on the tube pins, before seating the tube in its socket, and connect the multimeter to these wires.
This  is also a way to check C16 for leakage; else you need an insulation meter to check it.

Best regards, Emilio

To thank the Author because you find the post helpful or well done.

I also would check out the output transformer to look for a short circuit.

Giovanni

To thank the Author because you find the post helpful or well done.

Dear Joe,

in your set, grid bias for the 6F6 output tube ist generated by a dropping resistor in the return wire to the center tap of the power transformer. From the looks of the schematic, this appears to be a wire-wound resistor containing several sections. Anyhow, with a cold set there should be 250+50+85 (= 385) Ohms between the cathode (pin 8) of the 6F6 and the power tranformer center tap. Check this; an error up to 20% won´t harm. In operation, the center tap must be negative towards the chassis by the amount of the bias voltage, which ought to be about 16V, as Emilio pointed out.

The bias generated across this dropping resistor is then smoothed by RC-combination R3/C2. A short in C2 or a defective R3 would disturb the bias, possibly tying it to zero, and could be responsible for overheating and destruction of the 6F6, even if the grid coupling condenser is perfectly o.k.

Hope this helps,

Nikolaus

To thank the Author because you find the post helpful or well done.

Gentlemen,

Emilio, Giovanni and Nikolaus,

My sincere thanks for your expertise and insight. At this time, all I have done is measure the voltage from pin 5 control grid to pin 8 cathode. Measurment was taken with both a Fluke 77 DMM and a Simpson 260 VOM with both indicating a voltage of 0.30 volts with the control grid being positive and the cathode being negative. I will follow Giovanni's advice and make some resistance measurments as outlined in his post. It is a holiday here and I have done the eat too much and take a trip around the world at the local cinema with the new James Bond flick which makes a tiring day. The shutter dial will have to wait till I catch up. I really appreciate your help with my old Zenith, it is fun getting my fingers back in the works. I will post as soon as I digest this information and take measurements.

Kind regards,

Joe

To thank the Author because you find the post helpful or well done.

Dear Joe,

when you have digested the turkey and the pumpkin pie, replace C16 with a new one and your Zenith should play fine again.

Both cathode and control grid are biased through the same voltage divider network, so we can assume that proper biasing voltages are generated. Since the 6F6 is new and no grid current should flow, the change in the voltage on the control grid probably is the result of a leakage current from the plate of the 6F5, through C16. To be sure that C16 is the faulty component, try to temporarily disconnect C2 and check again the grid bias. If nothing changes, replace C16.

Remember that sometimes old paper capacitors may have some moisture inside, no matter if they are mounted inside a radio or they were stored for 40 or more years in an old warehouse. Try to find a plastic film or a ceramic capacitor rated for 300V DC or more.

Best wishes for your Zenith,
Emilio


To thank the Author because you find the post helpful or well done.

Dear Joe,

I forgot to add a resistance check between grid and cathode of the 6F6. I do not know if you already checked the resistors. If both R3 and R13 are good, you should find value not greater than 650 or 700 Kohms. An open resistor could also be responsible for the wrong bias.

Regards again,

Emilio

To thank the Author because you find the post helpful or well done.

Gentlemen,

First let me apologize for my delinquent response. I have been quite ill with bronchitis and the associated fun that goes with it. With the advice of Emilio, Giovanni and Nikolaus the Zenith is now in operating condition. The following is a synopsis of the repair. C16 was indeed defective and replaced. I did check the output transformer which was within spec. I also found that C21 was connected to ground on both ends, C3 from the grid of the 6K7 (RF) was missing, R10 had been replaced with an incorrect value, there was a 10Meg 2 Watt resistor in parallel with R16 at the 250 and 30 ohm taps as well as more cold solder joints than I can remember. I also found several instances where terminal strips had so much solder that they bridged to make connection with other components. I consider myself amateur when it comes to radio but who ever worked on this prior to me had no business attempting repairs. Again, my sincere thanks for your help and patience in the last two months.

Kind regards,

Joe Rose

To thank the Author because you find the post helpful or well done.

Dear Joe
Thank you for your "final" and well done answer to this repair story.
We have some pictures of the model on the model page but we are missing something like a name plate. Maybe you can also take better pictures from the chassis? The loudspeaker itself would also be a good object - it looks special on the existant picture number 3.

In any case: You show only one picture in your collection page. Perhaps you don't know that you can also upload a complete "front" picture (not really frontal! - somehow like picture number 1 now) if the model page shows already some? Try to get the pictures in the maximum size (933 x 700 pixels hight). It is much better to have pictures from our own collections than from eBay etc.

To thank the Author because you find the post helpful or well done.

I have taken several photos of the the Zenith 9S262 for your review. I will be happy to provide any information I have regarding this receiver.

I do know that the chassis (5905) was built in 1938 and was installed in to at least seven models. These radios are all 9 tube design as indicated in the prefix...  e.g., 9S204, 9S232, 9S242, 9S244, 9S262, 9S263, and 9S264. To the best of my knowledge the difference in these models is the variety of cabinetry which includes consoles, chairsides and large table models. As you may know, these are commonly known as "shutter dial" or "robot dial" radios due to the motorized tuning and the shutter action of the dial mechanism evident when changing bands. I have seen a video on utube.com of the dial mechanism in operation which is quite interesting if you haven't seen one in use.

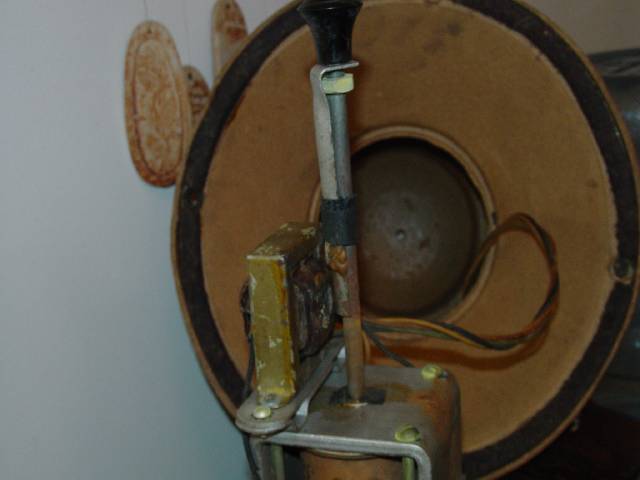

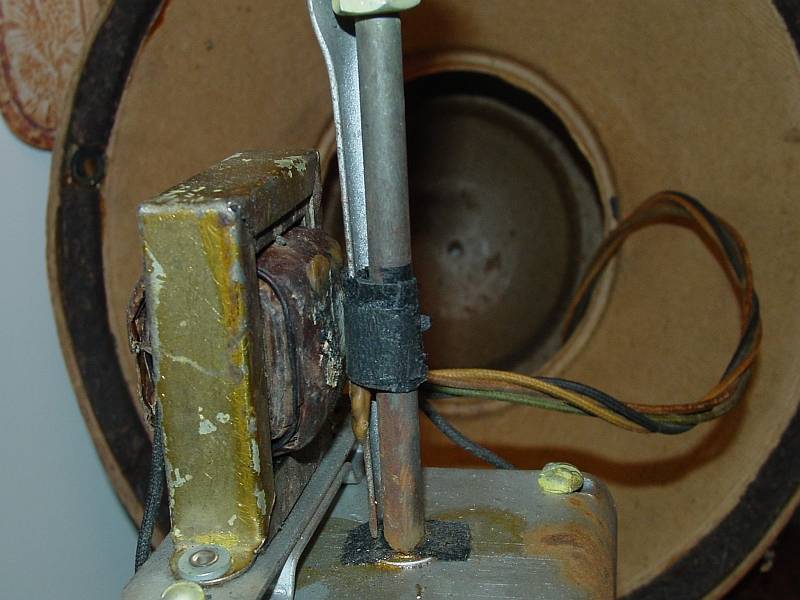

I have taken photos of the moving speaker enclosure for your review. I think the intent is to move the "Acoustic Adapter" in or out to vary the speaker baffle characteristics to produce a change in sound. This is accomplished via a rod through the speaker core, upset on the cone side and treaded on the back to mount a knob. Additionally, the chassis of these radios is isolated from the cabinet via rubber isolators at the chassis mounting bolts as to limit low frequency vibration of the receiver.

I intend to upload additional photos from my collection of which I try to maintain at around 100 receivers give or take a few. At this point all new additions to this collection need prior approval from my wife of 30+ years. I do however, have an out building (barn) where I can keep a few which are not allowed to play with the others. Like the Hallicrafters S-36A and the Hammalund HQ110A. They may be ugly to her but, to me they sensitive creatures with lots of knobs and switches. Enough already, please use and distribute these pictures as you wish.

Respectfully,

Joe Rose

• Zenith 9S262 (22 KB)

To thank the Author because you find the post helpful or well done.

I have experienced problems uploading photos. Is there information on the site to explain this process?

Thanks,

J. Rose

To thank the Author because you find the post helpful or well done.

Try this: http://www.radiomuseum.org/forum/howto_upload_your_pictures_to_a_radio_model_page.html

Regards, Emilio

To thank the Author because you find the post helpful or well done.

Tom and Emilio,

With your assistance I think I have the photo upload issue in control. I have (or will attempt) uploading some photos of the speaker adapter operation. I will also be adding some pics of other radios I have not seen on RM.org.

Best regards,

Joe

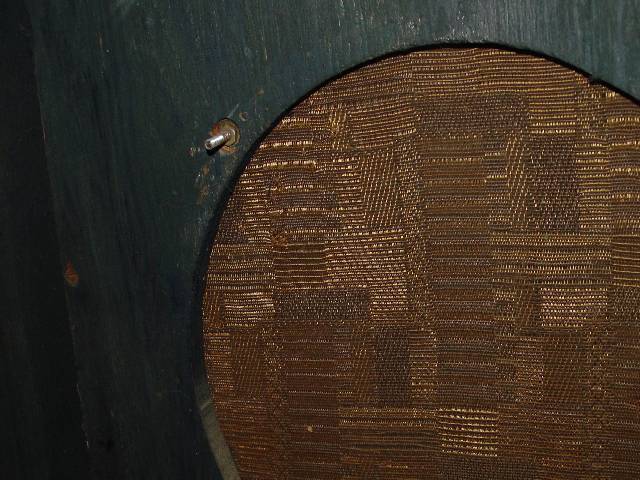

• Mounting stud (60 KB)

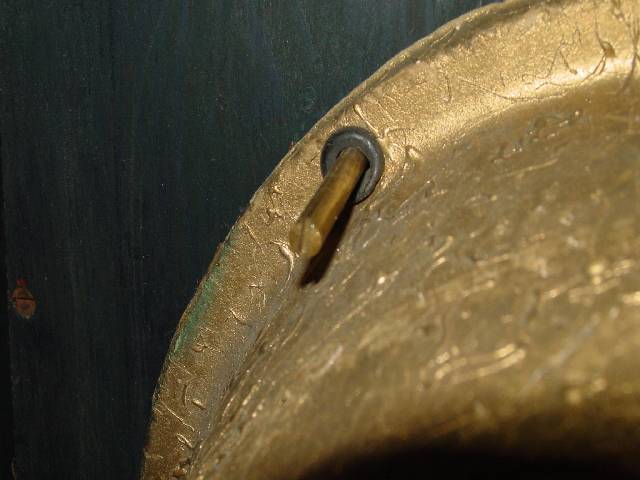

• Brass slide (46 KB)

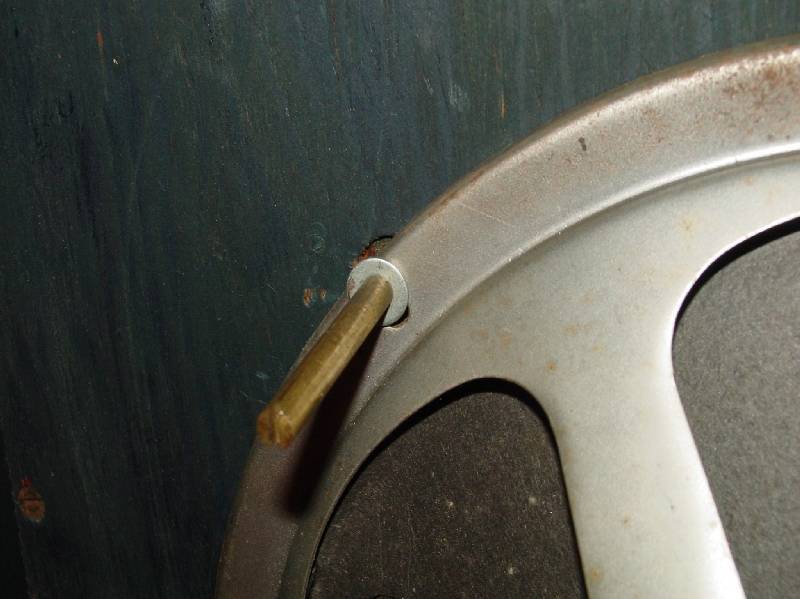

• adapter and grommet (33 KB)
• extended position (22 KB)
• closed position (55 KB)
