Hello all......I need guidance in repair of chart and dial lights. They are not working, and the bulbs are good. I am having trouble finding them in schematic. There must be a common part that is disabling. I am not getting voltage on pins that attach to chart light.  All help appreciated...Thanks  AL

To thank the Author because you find the post helpful or well done.

 2

10.Dec.08 21:57

Hans M. Knoll (D)
Editor
Articles: 2163
Count of Thanks: 13
Hans M. Knoll

Hello Alfred,

see here and observ, there ist a switch on/off



knoll

To thank the Author because you find the post helpful or well done.

 3

09.Jan.09 15:25

Alfred Pugliese (USA)
Articles: 112
Count of Thanks: 14

Hi all....Happy New Year!  For everyones info....The dial and chart lights do not work without the batteries inserted! So even when AC is working....the radio needs batteries to work lights.....AL

To thank the Author because you find the post helpful or well done.

 4
battery
23.Jan.09 23:53

Charles Jones (USA)
Articles: 30
Count of Thanks: 7

hello. you need one d-cell installed in order for the dial and map lights to work. there's a place in the back for a single d-cell, and that's where it goes. i hope this clears up your problem...



charles

To thank the Author because you find the post helpful or well done.

 5
Try cleaning the slide switches, too...
25.Jan.09 03:40

Todd Stackhouse (USA)
Articles: 151
Count of Thanks: 9

...those front panel slide switches in these are known to develop contact oxidation over time.  I had that same issue with the D7000Y I just got last month (I knew about it before I bought it; the eBay seller had said in his description that the lights and battery indicator weren't working), but noticed that if I worked the switch back and forth a few times, the dial lights would blink momentarily and the meter would jump.  A little De-Ox-It in the dial light/battery meter switch got them working properly...so I proceeded to put some into all the switches and controls.  It would not be a bad idea to use some of that or a similar contact cleaner on those switches (it will be necessary to pull the chassis to do it), and it may even get your lights working as well.  If not, I believe those are #123 bulbs.

To thank the Author because you find the post helpful or well done.

 6
? problem
14.Jun.10 23:11
625 from 7267

Sándor Selyem-Tóth (H)
Articles: 230
Count of Thanks: 9



Dear Hans!

 Now I have such a device can only get it at the end of the month.

Problems:
1 st / No (Back ) cover.
2 / I do not see the line voltage plug (maybe the battery power supply connector)?
Regards:

STS
Javaslat jobb fordításra

To thank the Author because you find the post helpful or well done.

 7
? Only a small Information.
15.Jun.10 10:03
668 from 7267

Hans M. Knoll (D)
Editor
Articles: 2163
Count of Thanks: 10
Hans M. Knoll

Hello  Sandor.

I dont own such Model. ROYAL 7000.  I have only a Book from ZENITH Radios.

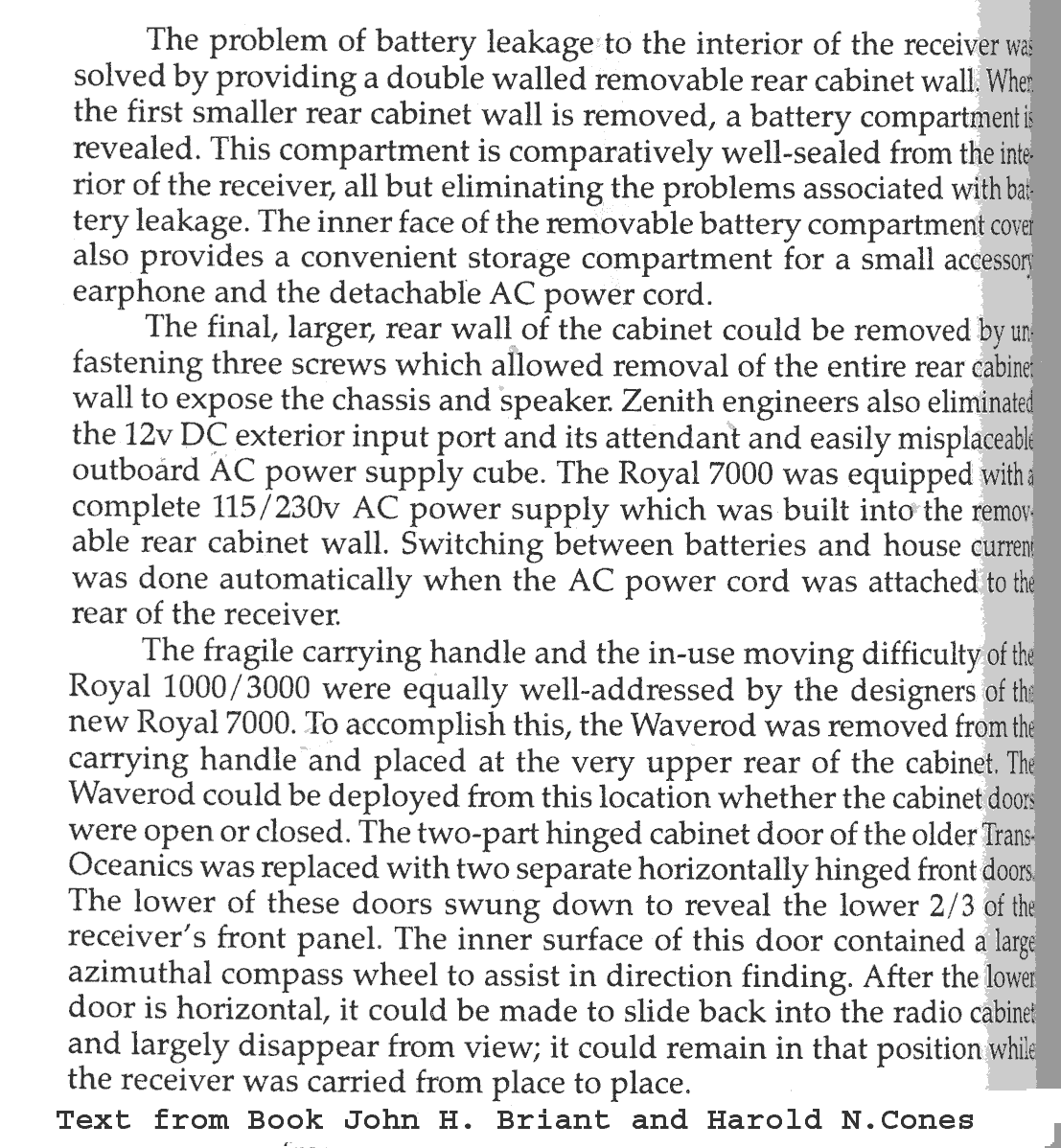

Attached you can find a Scann fom this book. There you can read, the Powersuply for AC is mounted inside the rear Cover.

Mr. Birkner, maybe can say more to this model?



regards, hans

Attachments:

To thank the Author because you find the post helpful or well done.

 8
T.O.Royal 7000 back
15.Jun.10 13:33
695 from 7267

Konrad Birkner † 12.08.2014 (D)
Articles: 2333
Count of Thanks: 15
Konrad Birkner † 12.08.2014

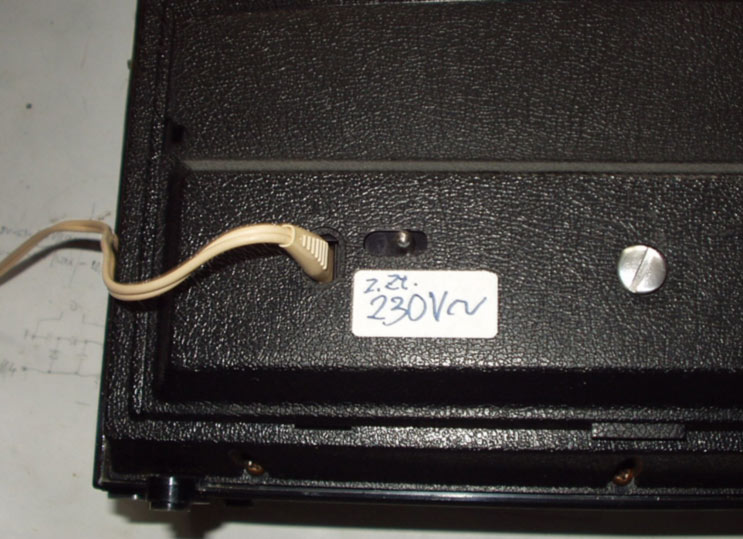

There is receptacle for a special mains plug. To insert it, a slider must be pushed aside which simultaneously changes the mode from battery to mains operation.  see attached pictures.
