• Country
• France

• Manufacturer / Brand
• 3a, Art et Acoustique Appliquée; Antibes

• Year
• 1975 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 272829

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Loudspeaker + integr.Amplifier

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

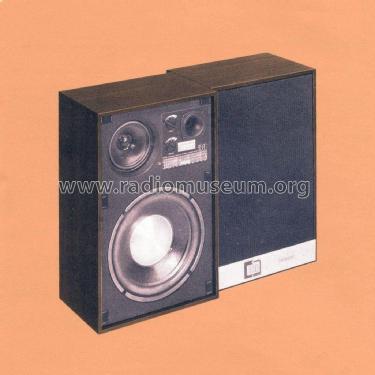

• Model: Activ 3-Way Speaker System Andante Electronique - 3a, Art et Acoustique

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 300 x 460 x 190 mm / 11.8 x 18.1 x 7.5 inch

• Notes

• 3a 3-Way Activ-Speaker System Model Andante Electronoique.

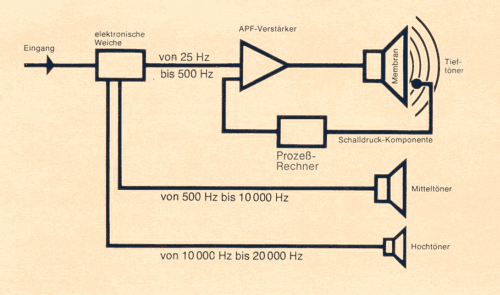

  Geschlossene aktive 3-Weg Lautsprecherbox mit APF-Servo-Einrichtug
  Übergangsfrequenzen: 500Hz elektronischer Filter
  10000Hz elektronische Signalaufbereitung
  25 - 20000Hz (+/-3dB), 8 Ohm
  Integrierter Verstärker 120Watt Musik
  1x Woofer 250mm mit 110mm Kalotte
  1x Midrange 130mm Konus
  1x Tweeter 50mm Druckkammersystem
  Brutto-Volumen 26 Liter.
  Höhen oberhalb 4000Hz in 4 Stufen a 2dB
  Tiefen unterhalb 400Hz in 4 Stufen a 2dB schaltbar.






• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Mentioned in
• -- Original prospect or advert (Faszination Klang - 1975)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
