Hongxing 红星 Red Star 504-3

Hongxing 红星 Red Star 504-3; Nanjing 南京无线电厂 (ID = 775690) Radio

Hongxing 红星 Red Star 504-3; Nanjing 南京无线电厂 (ID = 775691) Radio

Hongxing 红星 Red Star 504-3; Nanjing 南京无线电厂 (ID = 775694) Radio

Hongxing 红星 Red Star 504-3; Nanjing 南京无线电厂 (ID = 775695) Radio

Hongxing 红星 Red Star 504-3; Nanjing 南京无线电厂 (ID = 787222) Radio

Hongxing 红星 Red Star 504-3; Nanjing 南京无线电厂 (ID = 787235) Radio

Hongxing 红星 Red Star 504-3; Nanjing 南京无线电厂 (ID = 787243) Radio
Hongxing 红星 Red Star 504-3; Nanjing 南京无线电厂 (ID = 775444) Radio Hongxing 红星 Red Star 504-3; Nanjing 南京无线电厂 (ID = 787200) Radio
Use red slider bar for more.
Hongxing 红星 Red Star 504-3; Nanjing 南京无线电厂 (ID = 775444) Radio
Nanjing 南京无线电厂: Hongxing 红星 Red Star 504-3 [Radio] ID = 775444 933x571
Select picture or schematic to display from thumbnails on the right and click for download.

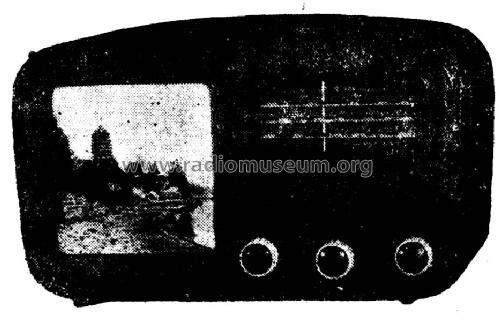

For model Hongxing 红星 Red Star 504-3, Nanjing 南京无线电厂 Nanjing Radio Factory, Nanjing:

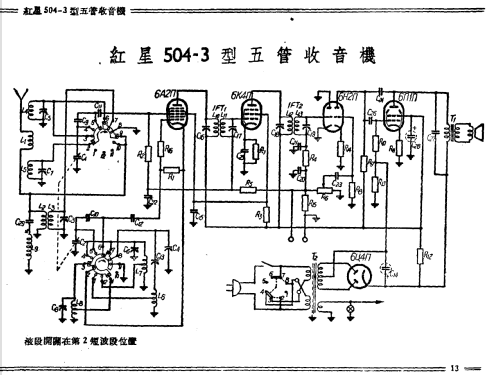

Picture from the Broadcasting Radio Manual (internal 09) China 1958-1-1 (page 14) for reference when somebody is uploading real photos and as reference for collectors, comparing models. Manual is in trad. Chinese.

Country:  People's Republic of China
Manufacturer / Brand:  Nanjing 南京无线电厂 Nanjing Radio Factory, Nanjing
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6А2П 6К4П 6Х2П 6Н1П 6Ц4П
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Hongxing 红星 Red Star 504-3 - Nanjing 南京无线电厂 Nanjing Radio
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes The Hongxing 红星 Red Star model 504-3 has a full transformer. Russian tube types in allglass technique, klick the tubes and you have the US or Europe equivalent. The wave bands are broadcast 520 - 1600 kHz, SW 3.9 - 8 and 9 - 16 MHz.
Mentioned in 10-Broadcast Radio Manual, July 1959 (1958/59) (page 185.)
Literature/Schematics (1) 09-Broadcast Radio Manual, July 1958-1-1 STPH (page 13.)

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Nanjing 南京无线电厂 Nanjing Radio Factory, Nanjing
Here you find 56 models, 45 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
