Xiongmao 熊猫 Panda 506

Xiongmao 熊猫 Panda 506; Nanjing 南京无线电厂 (ID = 776292) Radio

Xiongmao 熊猫 Panda 506; Nanjing 南京无线电厂 (ID = 776293) Radio

Xiongmao 熊猫 Panda 506; Nanjing 南京无线电厂 (ID = 776294) Radio

Xiongmao 熊猫 Panda 506; Nanjing 南京无线电厂 (ID = 776295) Radio

Xiongmao 熊猫 Panda 506; Nanjing 南京无线电厂 (ID = 787591) Radio

Xiongmao 熊猫 Panda 506; Nanjing 南京无线电厂 (ID = 787592) Radio

Xiongmao 熊猫 Panda 506; Nanjing 南京无线电厂 (ID = 787593) Radio

Xiongmao 熊猫 Panda 506; Nanjing 南京无线电厂 (ID = 787594) Radio
Xiongmao 熊猫 Panda 506; Nanjing 南京无线电厂 (ID = 785812) Radio Xiongmao 熊猫 Panda 506; Nanjing 南京无线电厂 (ID = 775461) Radio
Xiongmao 熊猫 Panda 506; Nanjing 南京无线电厂 (ID = 787590) Radio
Use red slider bar for more.
Xiongmao 熊猫 Panda 506; Nanjing 南京无线电厂 (ID = 785812) Radio
Nanjing 南京无线电厂: Xiongmao 熊猫 Panda 506 [Radio] ID = 785812 451x697
Select picture or schematic to display from thumbnails on the right and click for download.
For model Xiongmao 熊猫 Panda 506, Nanjing 南京无线电厂 Nanjing Radio Factory, Nanjing:
By courtesy of guest Feng Jianqiang, China.

Country:  People's Republic of China
Manufacturer / Brand:  Nanjing 南京无线电厂 Nanjing Radio Factory, Nanjing
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6А2П 6К4П 6Х2П 6Н1П 6Ц4П
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Xiongmao 熊猫 Panda 506 - Nanjing 南京无线电厂 Nanjing Radio
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 390 x 270 x 200 mm / 15.4 x 10.6 x 7.9 inch
Notes The Xiongmao 熊猫 Panda model 506 and 506-1 share the same schematic - with a full transformer. They have a very similar cabinet and receive broadcast 520 - 1600 kHz and SW 3.8 - 8 plus 8 - 16 MHz. Russian tube types in allglass technique, klick the tubes and you have the US or Europe equivalent. Same tube line up as Hongxing 红星 Red Star 505-1.

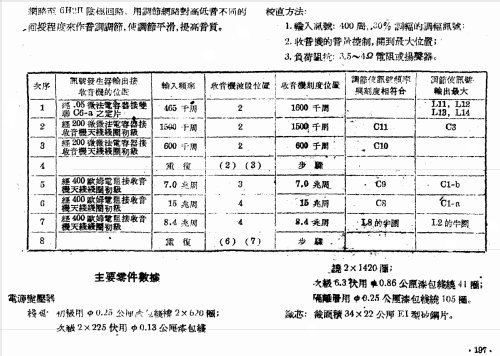

Mentioned in 10-Broadcast Radio Manual, July 1959 (1958/59) (page 195 ff.)

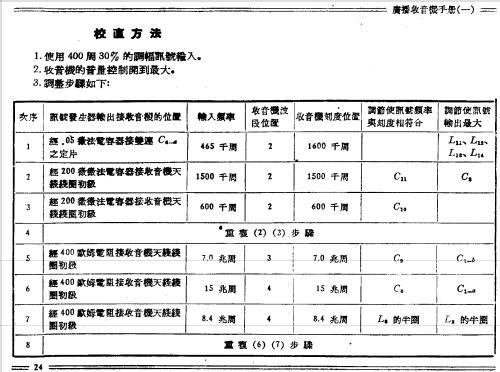

Literature/Schematics (1) 09-Broadcast Radio Manual, July 1958-1-1 STPH (page 21.)

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Nanjing 南京无线电厂 Nanjing Radio Factory, Nanjing
Here you find 56 models, 45 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
