Aalco Loop Aerial Type 35

Aalco Loop Aerial Type 35; Aalco Radio (ID = 1329768) Antenna Aalco Loop Aerial Type 35; Aalco Radio (ID = 1329769) Antenna
Aalco Loop Aerial Type 35; Aalco Radio (ID = 1303083) Antenna Aalco Loop Aerial Type 35; Aalco Radio (ID = 1303084) Antenna
Use red slider bar for more.

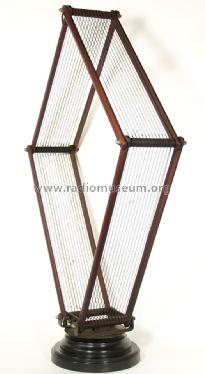

Aalco Loop Aerial Type 35; Aalco Radio (ID = 1329768) Antenna
Aalco Radio: Aalco Loop Aerial Type 35 [Antenna] ID = 1329768 734x1337
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aalco Loop Aerial Type 35, Aalco Radio Laboratories, Inc.; Chicago, Illinois:
eBay auction 190741354392, firebottles, Chapel Hill, CA, USA.

Country:  United States of America (USA)
Manufacturer / Brand:  Aalco Radio Laboratories, Inc.; Chicago, Illinois
Year: 1926 Category: Antenna (Aerial) or Coupler
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Aalco Loop Aerial Type 35 - Aalco Radio Laboratories, Inc.
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 0 x 30 x 0 inch / 0 x 762 x 0 mm
Notes Aalco folding Loop Aerial Specifications: Genuine Walnut; Felt-bottomed base. Wavelength range 180 to 570 meters. Metal parts of highly polished nickeled brass; 64-strand low resistance wire.

Loop Type No. 35 For tuned radio frequency, Neutrodyne, Browning-Drake and other receivers using .00035 variable condensers.
Price in first year of sale 13.00 USD

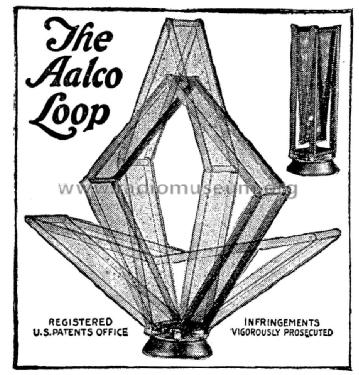

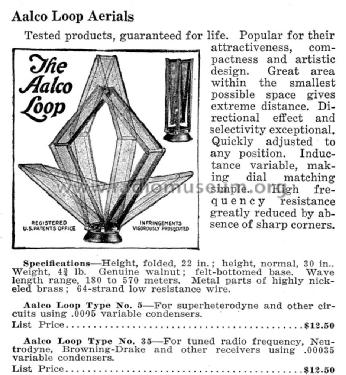

Mentioned in August 1926 McGraw-Hill Radio Trade Catalog page 29

Model page created by Alan Larsen. See "Data change" for further contributors.



All listed radios etc. from Aalco Radio Laboratories, Inc.; Chicago, Illinois
Here you find 3 models, 3 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
