New Wave

New Wave ; ABA brand (ID = 2106525) Radio New Wave ; ABA brand (ID = 2107579) Radio

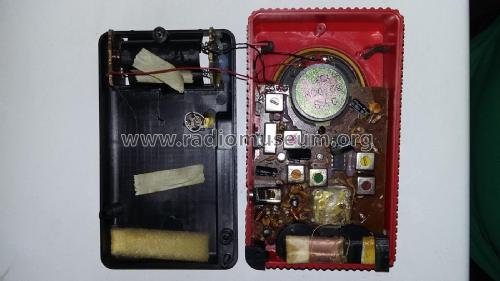

New Wave ; ABA brand (ID = 2107580) Radio
Use red slider bar for more.
New Wave ; ABA brand (ID = 2106525) Radio
ABA brand: New Wave [Radio] ID = 2106525 1400x849
Select picture or schematic to display from thumbnails on the right and click for download.
For model New Wave, ABA (brand):
from my collection

Country:  Worldwide
Manufacturer / Brand:  ABA (brand)
Year: 1995 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2: unknown_tr ULN2204
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / UM-3: 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: New Wave - ABA brand
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 80 x 140 x 50 mm / 3.1 x 5.5 x 2 inch

Model page created by Danilo Crnogorac. See "Data change" for further contributors.



All listed radios etc. from ABA (brand)
Here you find 9 models, 9 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
