FM Radio Microphone ABA-88

FM Radio Microphone ABA-88; ABA brand (ID = 2049828) Microphone/PU FM Radio Microphone ABA-88; ABA brand (ID = 2049829) Microphone/PU
FM Radio Microphone ABA-88; ABA brand (ID = 2049830) Microphone/PU FM Radio Microphone ABA-88; ABA brand (ID = 2049831) Microphone/PU
FM Radio Microphone ABA-88; ABA brand (ID = 2049832) Microphone/PU FM Radio Microphone ABA-88; ABA brand (ID = 2049833) Microphone/PU
FM Radio Microphone ABA-88; ABA brand (ID = 2049834) Microphone/PU FM Radio Microphone ABA-88; ABA brand (ID = 2049835) Microphone/PU
FM Radio Microphone ABA-88; ABA brand (ID = 2049836) Microphone/PU
Use red slider bar for more.
FM Radio Microphone ABA-88; ABA brand (ID = 2049828) Microphone/PU
ABA brand: FM Radio Microphone ABA-88 [Microphone/PU] ID = 2049828 1400x1006
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Radio Microphone ABA-88, ABA (brand):
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Worldwide
Manufacturer / Brand:  ABA (brand)
Year: 1988 ?? Category: Microphone or Pick-up element
Semiconductors (the count is only for transistors) 3:
Main principle Transmitter
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / 1× 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: FM Radio Microphone ABA-88 - ABA brand
Material Metal case
Dimensions (WHD) 185 x 27 x 38 mm / 7.3 x 1.1 x 1.5 inch
Notes

Electret  Condenser Microphone. Transmitter Frequency range: 92-104 Mhz.

Range: over 300 feet in open field. Antenna: 1/4 Lambda. Frequency response: 50-15000 Hz.

Net weight (2.2 lb = 1 kg) 0.160 kg / 0 lb 5.6 oz (0.352 lb)

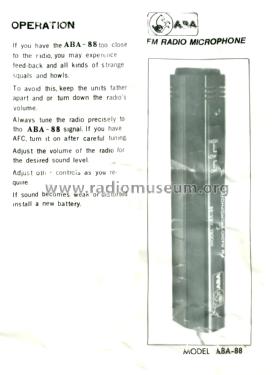

Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from ABA (brand)
Here you find 9 models, 9 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
