Walkie-Talkie

Walkie-Talkie ; ABA brand (ID = 1480033) Citizen
Use red slider bar for more.
Walkie-Talkie ; ABA brand (ID = 1480033) Citizen

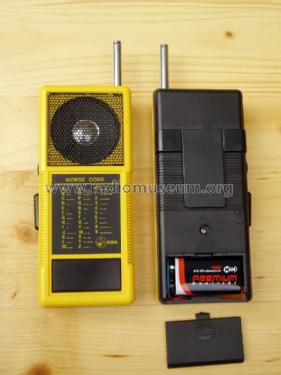

ABA brand: Walkie-Talkie [Citizen] ID = 1480033 600x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model Walkie-Talkie, ABA (brand)

Country:  Worldwide
Manufacturer / Brand:  ABA (brand)
Year: 1990 ?? Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver
Wave bands Short Wave (SW only)
Details
Power type and voltage Batteries / addl. power jack / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Walkie-Talkie - ABA brand
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 150 x 70 x 35 mm / 5.9 x 2.8 x 1.4 inch
Notes

Kinderspielzeug Walkie Talkie
1 Kanal Funkgerät für das 6m Band Quarzgesteuert 49.860 MHz
Teleskopantenne 61cm (Aussenmass)
Front mit aufgedrucktem Morsecode.

Keine Zulassungsnummer oder Typenbezeichnung vorhanden.

Model page created by Winfried Höller. See "Data change" for further contributors.
