Transbrasil Junior

Transbrasil Junior ; ABC - Rádio e (ID = 942659) Radio Transbrasil Junior ; ABC - Rádio e (ID = 942658) Radio

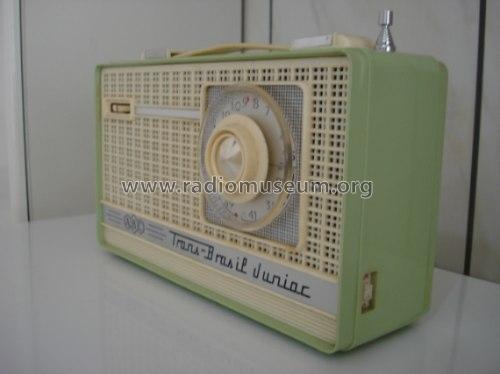

Transbrasil Junior ; ABC - Rádio e (ID = 942660) Radio Transbrasil Junior ; ABC - Rádio e (ID = 942661) Radio
Use red slider bar for more.

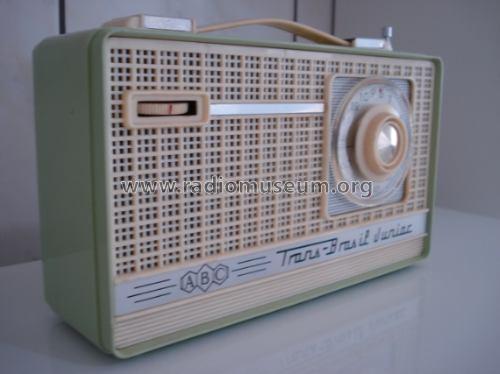

Transbrasil Junior ; ABC - Rádio e (ID = 942659) Radio
ABC - Rádio e: Transbrasil Junior [Radio] ID = 942659 500x374
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transbrasil Junior, ABC - Rádio e Televisão do Nordeste S/A:
From mercadolivre.com.br

Country:  Brazil
Manufacturer / Brand:  ABC - Rádio e Televisão do Nordeste S/A
Year: 1969 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Transbrasil Junior - ABC - Rádio e Televisão do
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 160 x 90 mm / 9.4 x 6.3 x 3.5 inch

Model page created by Meyer Rochwerger. See "Data change" for further contributors.



All listed radios etc. from ABC - Rádio e Televisão do Nordeste S/A
Here you find 14 models, 8 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
