A-100

A-100; Accuphase Laboratory (ID = 679703) Ampl/Mixer A-100; Accuphase Laboratory (ID = 679704) Ampl/Mixer
A-100; Accuphase Laboratory (ID = 763317) Ampl/Mixer A-100; Accuphase Laboratory (ID = 1772533) Ampl/Mixer
A-100; Accuphase Laboratory (ID = 1772586) Ampl/Mixer A-100; Accuphase Laboratory (ID = 1772745) Ampl/Mixer
A-100; Accuphase Laboratory (ID = 1772749) Ampl/Mixer A-100; Accuphase Laboratory (ID = 1772751) Ampl/Mixer
A-100; Accuphase Laboratory (ID = 1772755) Ampl/Mixer
Use red slider bar for more.
A-100; Accuphase Laboratory (ID = 679703) Ampl/Mixer
Accuphase Laboratory: A-100 [Ampl/Mixer] ID = 679703 900x653
Select picture or schematic to display from thumbnails on the right and click for download.
For model A-100, Accuphase Laboratory; Yokohama:

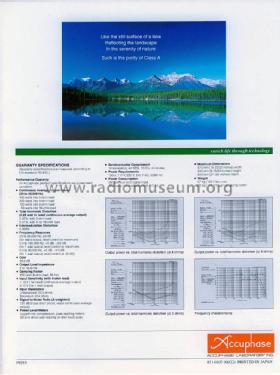

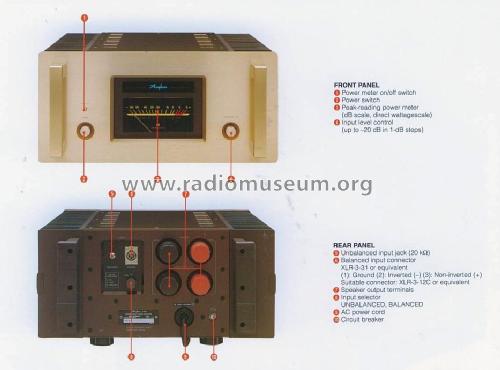

Prospekt

Country:  Japan
Manufacturer / Brand:  Accuphase Laboratory; Yokohama
Year: 1991 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 16:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100; 117; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 100 W (unknown quality)
from Radiomuseum.org Model: A-100 - Accuphase Laboratory; Yokohama
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 475 x 240 x 553 mm / 18.7 x 9.4 x 21.8 inch
Notes Mono-Endstufe, 100Watt, 8 Ohm.
44 FET's, 10 IC's, 44 Dioden.
Net weight (2.2 lb = 1 kg) 57 kg / 125 lb 8.8 oz (125.551 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Accuphase Laboratory; Yokohama
Here you find 107 models, 106 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
