Compact Disc Player DP-55

Compact Disc Player DP-55; Accuphase Laboratory (ID = 699057) R-Player Compact Disc Player DP-55; Accuphase Laboratory (ID = 699058) R-Player
Compact Disc Player DP-55; Accuphase Laboratory (ID = 698997) R-Player Compact Disc Player DP-55; Accuphase Laboratory (ID = 1773069) R-Player
Compact Disc Player DP-55; Accuphase Laboratory (ID = 1773070) R-Player Compact Disc Player DP-55; Accuphase Laboratory (ID = 1773072) R-Player
Compact Disc Player DP-55; Accuphase Laboratory (ID = 1773074) R-Player Compact Disc Player DP-55; Accuphase Laboratory (ID = 1773076) R-Player
Use red slider bar for more.
Compact Disc Player DP-55; Accuphase Laboratory (ID = 699057) R-Player
Accuphase Laboratory: Compact Disc Player DP-55 [R-Player] ID = 699057 933x635
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Disc Player DP-55, Accuphase Laboratory; Yokohama:

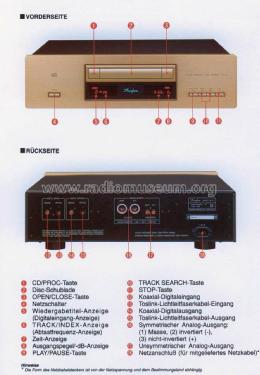

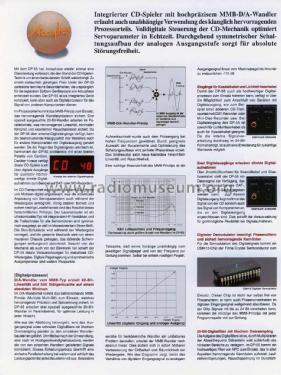

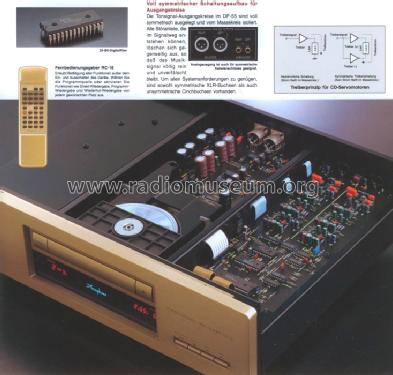

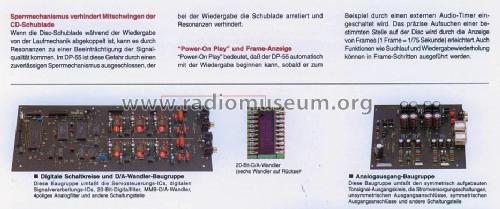

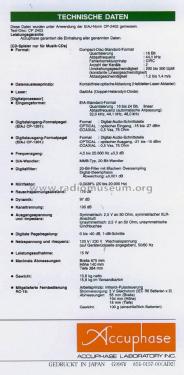

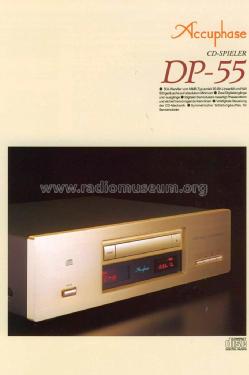

Original prospekt.

Country:  Japan
Manufacturer / Brand:  Accuphase Laboratory; Yokohama
Year: 1985 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Compact Disc Player DP-55 - Accuphase Laboratory; Yokohama
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 475 x 140 x 390 mm / 18.7 x 5.5 x 15.4 inch
Notes

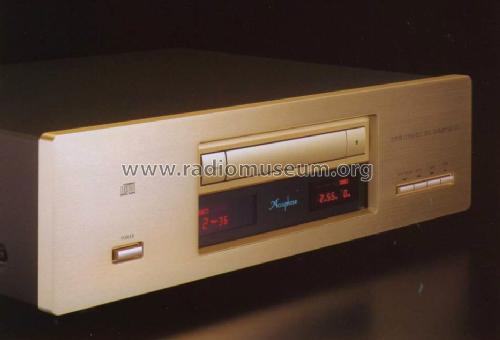

Frontloading Single Compact Disc Player Model Accuphase DP-55.
Frequency response: 4Hz to 20kHz
Dynamic range: 97dB
Signal to Noise Ratio: 116dB
Channel separation: 105dB
Total harmonic distortion: 0.0038%
Line output: 2.5V
Digital outputs: coaxial, optical

Net weight (2.2 lb = 1 kg) 10.8 kg / 23 lb 12.6 oz (23.789 lb)

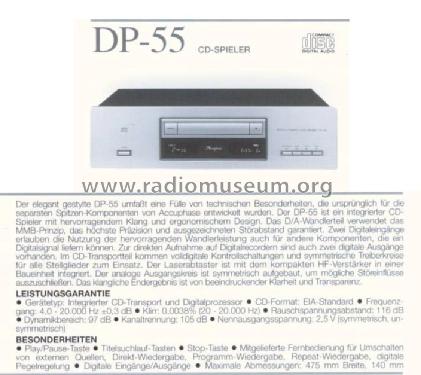

Mentioned in -- Original prospect or advert (Accuphase Flyer)

Model page created by Franz Scharner. See "Data change" for further contributors.
