For model Integrated Stereo Amplifier E-305V, Accuphase Laboratory; Yokohama:

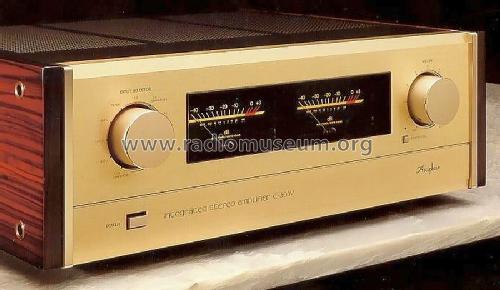

Prospektbild

Country:  Japan
Manufacturer / Brand:  Accuphase Laboratory; Yokohama
Year: 1991 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 59:
Main principle Audio-Amplification
Wave bands - without
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 100; 117; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 360 W (undistorted)
from Radiomuseum.org Model: Integrated Stereo Amplifier E-305V - Accuphase Laboratory; Yokohama
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 475 x 170 x 418 mm / 18.7 x 6.7 x 16.5 inch
Notes

Accuphase Remote Controlled Integrated Stereo Amplifier Model E-305V.
Power output:
130 Watts per channel into 8Ω (stereo)
180 Watts pe rchannel into 4Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.02%
Damping factor: 100
Input sensitivity: 0.123mV (MC), 3.8mV (MM), 125mV (line)
Signal to noise ratio: 72dB (MC), 88dB (MM), 110dB (line)
Tone Controls:
Bass 300Hz +/-10dB (50Hz)
Treble 3000Hz +/-10dB (20000Hz)
Loudness
Subsonic Filter - 17Hz, -12dB/Oct.
Speaker load impedance: 4Ω to 16Ω
Power Consumption max. 310 Watts (with IEC-65)

Accuphase Remote Commander Model RC-8
(2x 1,5V IEC R6, 64x149x18mm, 140g)

Semiconductors:
59x transistors, 22x FET's, 24x IC's, 69x diodes


Net weight (2.2 lb = 1 kg) 22.7 kg / 50 lb 0 oz (50 lb)
Mentioned in - - Manufacturers Literature (Service Manual)
Literature/Schematics (1) -- Original prospect or advert (Accuphase Flyer)
