Stereo Power Amplifier P-20

Stereo Power Amplifier P-20; Accuphase Laboratory (ID = 679675) Ampl/Mixer Stereo Power Amplifier P-20; Accuphase Laboratory (ID = 679676) Ampl/Mixer
Use red slider bar for more.
Stereo Power Amplifier P-20; Accuphase Laboratory (ID = 679675) Ampl/Mixer

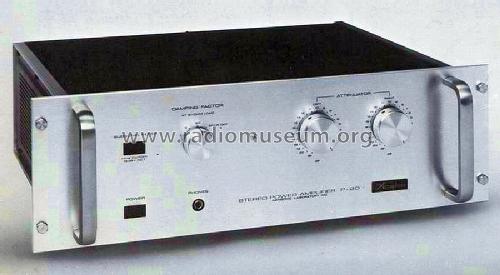

Accuphase Laboratory: Stereo Power Amplifier P-20 [Ampl/Mixer] ID = 679675 900x495
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Power Amplifier P-20, Accuphase Laboratory; Yokohama:
Prospekt

Country:  Japan
Manufacturer / Brand:  Accuphase Laboratory; Yokohama
Year: 1976 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 60:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100; 117; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 140 W (unknown quality)
from Radiomuseum.org Model: Stereo Power Amplifier P-20 - Accuphase Laboratory; Yokohama
Material Metal case
Shape Rack
Dimensions (WHD) 482 x 150 x 353 mm / 19 x 5.9 x 13.9 inch
Notes Stereo Power Amplifier, 70 Watts per channel, 8 Ohms.
1 IC, 44 Diodes.
Net weight (2.2 lb = 1 kg) 23.5 kg / 51 lb 12.2 oz (51.762 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
