For model AM FM Stereo Tuner T-100, Accuphase Laboratory; Yokohama:
aus ebay, #151106492720, Verkäufer bruhako

Country:  Japan
Manufacturer / Brand:  Accuphase Laboratory; Yokohama
Year: 1973–1982 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 45:
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 100; 117; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM FM Stereo Tuner T-100 - Accuphase Laboratory; Yokohama
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 445 x 152 x 355 mm / 17.5 x 6 x 14 inch

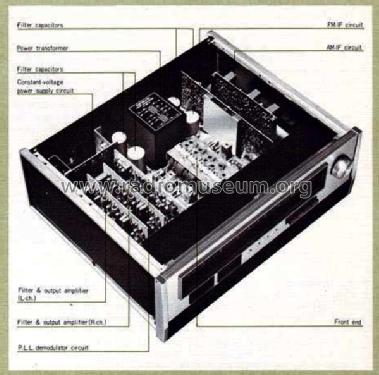

Notes Accuphase AM FM Stereo Tuner T-100.
Signal strength Meter, Center Tuning Meter, Multipath Meter.
FM section: 5-gang tuning, 88-108 MHz or 76-90 MHz
IF: 4 LC circuits and 3 phase linear LC filter blocks.
MPX decoder IC MC1310P.
Frequency Response: 20-15000 Hz.
AM section: 3-gang tuning, feritte rod antenna, 10 (9) kHz whistle filter.
Semiconductor complement: 45 transistors, 7 FETs, 9 ICs and 43 diodes.
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Source of data -- Original prospect or advert
Literature/Schematics (1) -- Original-techn. papers.
