Genometer 156

Genometer 156; Accurate Instrument (ID = 2343767) Equipment
Use red slider bar for more.
Genometer 156; Accurate Instrument (ID = 2343767) Equipment

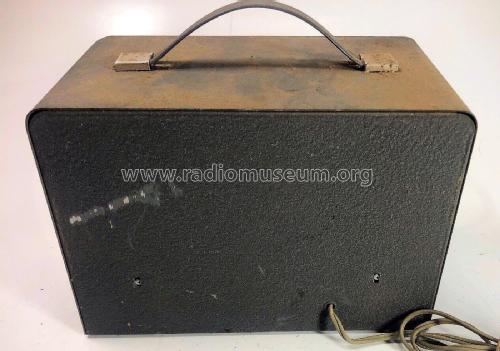

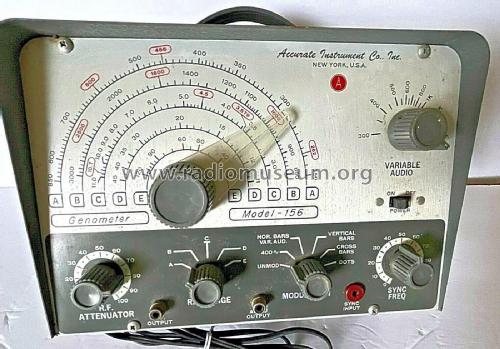

Accurate Instrument: Genometer 156 [Equipment] ID = 2343767 1095x866
Select picture or schematic to display from thumbnails on the right and click for download.
For model Genometer 156, Accurate Instrument Co. Inc.; New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Accurate Instrument Co. Inc.; New York (NY)
Year: 1960 ? Category: Service- or Lab Equipment
Valves / Tubes 3: EF96 ECC81 ECC81
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Genometer 156 - Accurate Instrument Co. Inc.;
Material Metal case
Dimensions (WHD) 260 x 180 x 140 mm / 10.2 x 7.1 x 5.5 inch
Notes

Bands 250-850 KHz, 850-3000 kHz, 3-11 MHz, 11-45 kHz,  33-120 MHz.

It includes:

  • RF generator
  • Marker
  • Audio Generator
  • Generator of Vertical and Horizontal Bars
  • Point generator
  • Cross generator

Incluye:

  • Generador de RF
  • Marker
  • Generador de Audio
  • Generador de Barras Verticales y Horizontales
  • Generador de puntos.
  • Generador de cruces.



Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Price in first year of sale 38.50 USD

Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.



All listed radios etc. from Accurate Instrument Co. Inc.; New York (NY)
Here you find 9 models, 8 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
