Utility Tester 161

Utility Tester 161; Accurate Instrument (ID = 620763) Equipment
Utility Tester 161; Accurate Instrument (ID = 1077879) Equipment Utility Tester 161; Accurate Instrument (ID = 489899) Equipment
Utility Tester 161; Accurate Instrument (ID = 489917) Equipment Utility Tester 161; Accurate Instrument (ID = 1077891) Equipment
Utility Tester 161; Accurate Instrument (ID = 1167281) Equipment Utility Tester 161; Accurate Instrument (ID = 1167282) Equipment
Utility Tester 161; Accurate Instrument (ID = 1167283) Equipment Utility Tester 161; Accurate Instrument (ID = 1167284) Equipment
Utility Tester 161; Accurate Instrument (ID = 1400579) Equipment Utility Tester 161; Accurate Instrument (ID = 1400582) Equipment
Use red slider bar for more.
Utility Tester 161; Accurate Instrument (ID = 1077879) Equipment
Accurate Instrument: Utility Tester 161 [Equipment] ID = 1077879 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Utility Tester 161, Accurate Instrument Co. Inc.; New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Accurate Instrument Co. Inc.; New York (NY)
Year: 1960 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Other, details in remarks or not known. / AC 120 & Batt 7.5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Utility Tester 161 - Accurate Instrument Co. Inc.;
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 8.5 x 3.25 x 9.5 inch / 216 x 83 x 241 mm
Notes Accurate Instruments 161, Utility Tester;

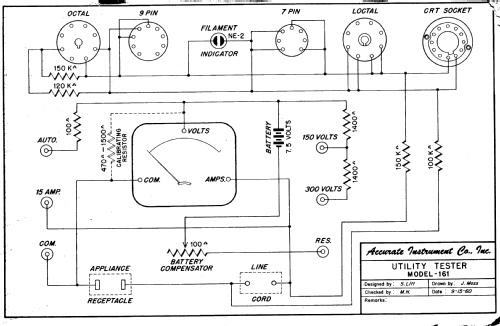

Simple tube filament tester with six valve sockets, ampere-, volt- and resistance meter.
One instrument, one neonlamp-indicator (NE 2).
Price in first year of sale 22.50 $
Source of data -- Original prospect or advert

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Accurate Instrument Co. Inc.; New York (NY)
Here you find 9 models, 8 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
