5062

5062; ACEC, Ateliers de (ID = 134869) Radio 5062; ACEC, Ateliers de (ID = 134868) Radio

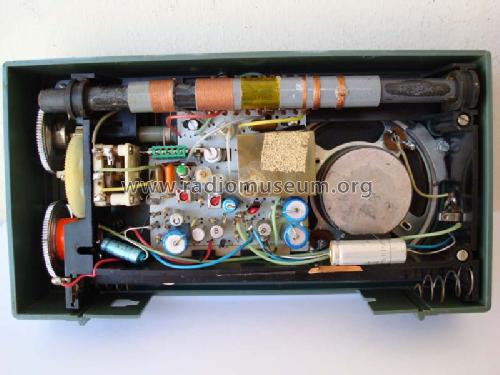

5062; ACEC, Ateliers de (ID = 784712) Radio
Use red slider bar for more.
5062; ACEC, Ateliers de (ID = 134869) Radio
ACEC, Ateliers de: 5062 [Radio] ID = 134869 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5062, ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi

Country:  Belgium
Manufacturer / Brand:  ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: 5062 - ACEC, Ateliers de
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 195 x 110 x 53 mm / 7.7 x 4.3 x 2.1 inch
Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.



All listed radios etc. from ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Here you find 244 models, 235 with images and 39 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
