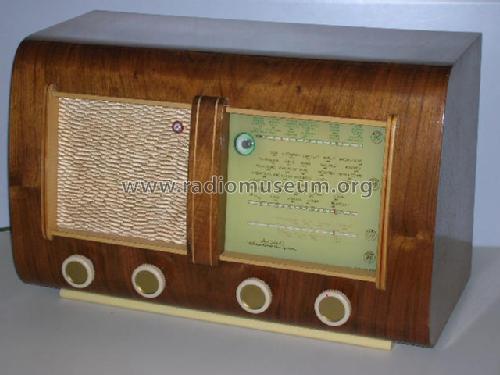

530; ACEC, Ateliers de (ID = 716378) Radio
ACEC, Ateliers de: 530 [Radio] ID = 716378 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 530, ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi

Country:  Belgium
Manufacturer / Brand:  ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH41 EF41 EBC41 6V6 6E5 5Y3
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 145; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 530 - ACEC, Ateliers de
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 320 x 240 mm / 20.1 x 12.6 x 9.4 inch
Notes

Dial lamp 2x 6,3 V/0,3 A

Source of data -- Original prospect or advert
Literature/Schematics (2) Le Guide du Collectionneur TSF Biraud/Foster, Vol. I (page 95)

Model page created by Hugo Sneyers. See "Data change" for further contributors.



All listed radios etc. from ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Here you find 233 models, 225 with images and 36 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
