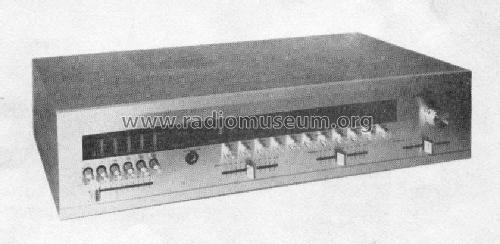

ACEC, Ateliers de: 5845 [Radio] ID = 114307 840x410
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5845, ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi:
service manual

Country:  Belgium
Manufacturer / Brand:  ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Year: 1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 38:
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 5845 - ACEC, Ateliers de
Material Various materials
Dimensions (WHD) 510 x 120 x 300 mm / 20.1 x 4.7 x 11.8 inch
Notes HI FI stereoanlagen
Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.
