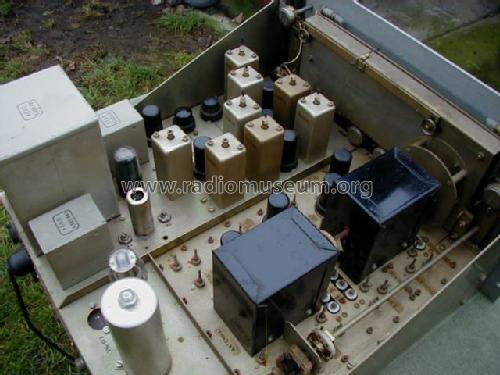

Communications Receiver TL-72032 (JV14-B49)

Communications Receiver TL-72032 ; ACEC, Ateliers de (ID = 724396) Commercial Re Communications Receiver TL-72032 ; ACEC, Ateliers de (ID = 724397) Commercial Re
Communications Receiver TL-72032 ; ACEC, Ateliers de (ID = 724398) Commercial Re Communications Receiver TL-72032 ; ACEC, Ateliers de (ID = 724399) Commercial Re
Communications Receiver TL-72032 ; ACEC, Ateliers de (ID = 724400) Commercial Re Communications Receiver TL-72032 ; ACEC, Ateliers de (ID = 724401) Commercial Re
Communications Receiver TL-72032 ; ACEC, Ateliers de (ID = 724715) Commercial Re
Use red slider bar for more.
Communications Receiver TL-72032 ; ACEC, Ateliers de (ID = 724396) Commercial Re
ACEC, Ateliers de: Communications Receiver TL-72032 [Commercial Re] ID = 724396 528x288
Select picture or schematic to display from thumbnails on the right and click for download.
For model Communications Receiver TL-72032 (JV14-B49), ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi:
aus ebay, mit Erlaubnis des Verkäufers em85

Country:  Belgium
Manufacturer / Brand:  ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Year: 1950 ?? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 14: unknown_Tube 6J5 6SG7 6V6 5Y3 VR150
Main principle Superhet with RF-stage
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Communications Receiver TL-72032 - ACEC, Ateliers de
Material Metal case
Shape Chassis only or for «building in»
Notes 6 Bands, 0,6 - 32 MHz.
Net weight (2.2 lb = 1 kg) 28 kg / 61 lb 10.8 oz (61.674 lb)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.



All listed radios etc. from ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Here you find 233 models, 225 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
