Inconnu (unknown)

Inconnu ; ACEC, Ateliers de (ID = 2395381) Radio Inconnu ; ACEC, Ateliers de (ID = 2395382) Radio
Use red slider bar for more.
Inconnu ; ACEC, Ateliers de (ID = 2395381) Radio
ACEC, Ateliers de: Inconnu [Radio] ID = 2395381 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Inconnu (unknown), ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi

Country:  Belgium
Manufacturer / Brand:  ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Year: 1962 ?? Category: Broadcast Receiver - or past WW2 Tuner

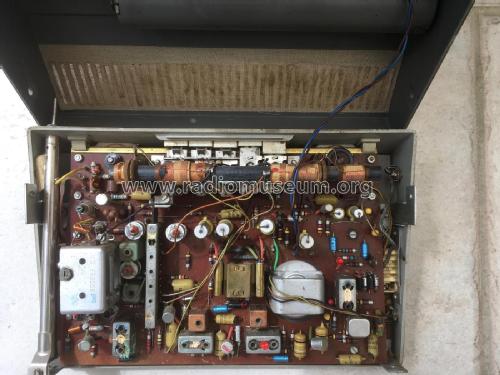

Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)

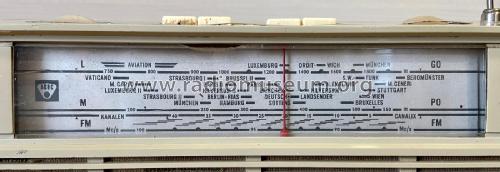

Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Inconnu - ACEC, Ateliers de
Material Modern plastics (no Bakelite or Catalin)

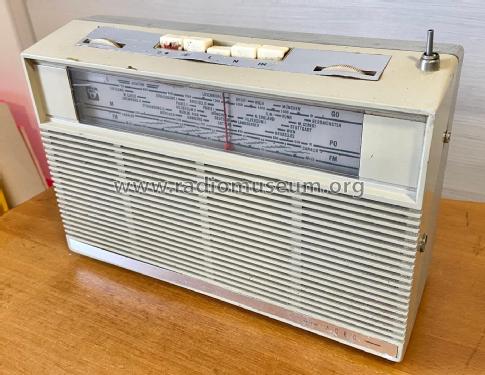

Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 185 x 105 mm / 11 x 7.3 x 4.1 inch
Notes

Radio à transistor portative 3 gammes d'ondes

Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)

Model page created by Jacky Blaise. See "Data change" for further contributors.
