Alternakid AL55 X2-B105L

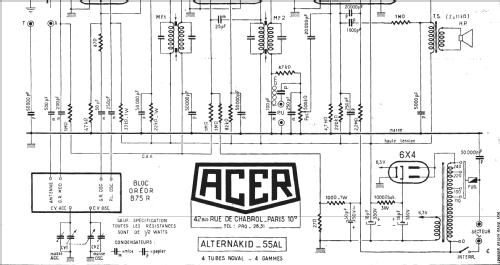

Alternakid AL55; ACER A.C.E.R. / (ID = 253373) Kit

Alternakid AL55; ACER A.C.E.R. / (ID = 253374) Kit
Alternakid AL55; ACER A.C.E.R. / (ID = 252859) Kit
Use red slider bar for more.
Alternakid AL55; ACER A.C.E.R. / (ID = 252859) Kit
ACER A.C.E.R. /: Alternakid AL55 [Kit] ID = 252859 590x438
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alternakid AL55 X2-B105L, ACER (A.C.E.R.) / Omnium Commercial d'Électricité et de Radio; Rueil, Paris

Country:  France
Manufacturer / Brand:  ACER (A.C.E.R.) / Omnium Commercial d'Électricité et de Radio; Rueil, Paris
Year: 1954 Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 4: ECH81 EBF80 ECL80 6X4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Alternakid AL55 [X2-B105L] - ACER A.C.E.R. / Omnium
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 310 x 205 x 160 mm / 12.2 x 8.1 x 6.3 inch
Notes Auch mit Röhren: 6AJ8, 6N8, 6AB8, 6X4.
Mentioned in -- Original prospect or advert

Model page created by Peter Hoddow. See "Data change" for further contributors.
