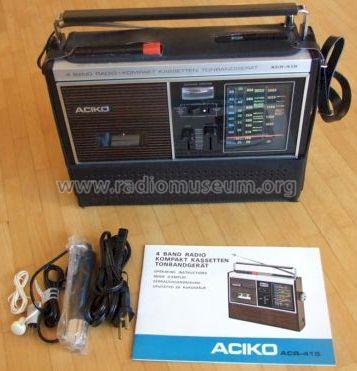

4 Band Radio Kompakt Kassetten Tonbandgerät ACR-415
Use red slider bar for more.

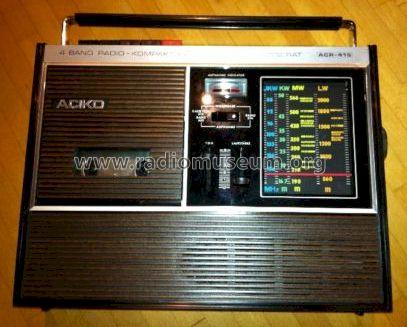

ACIKO Electronic: 4 Band Radio Kompakt Kassetten Tonbandgerät ACR-415 [Radio] ID = 1103426 407x327
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1975 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | Cassette-Recorder or -Player |
| Power type and voltage | Line / Batteries (any type) / 220/ ? x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: 4 Band Radio Kompakt Kassetten Tonbandgerät ACR-415 - ACIKO Electronic GmbH , |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Notes | Aciko ACR-415, 4 Band Radio Kompakt Kassetten Tonbandgerät; Tonregler & Anzeigeinstrument. |
Model page created by a member from A. See "Data change" for further contributors.
