AR-253 F

AR-253 F; ACIKO Electronic (ID = 1533720) Radio AR-253 F; ACIKO Electronic (ID = 1533721) Radio

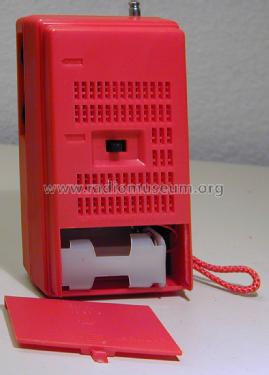

AR-253 F; ACIKO Electronic (ID = 1533722) Radio AR-253 F; ACIKO Electronic (ID = 1533723) Radio
AR-253 F; ACIKO Electronic (ID = 1533724) Radio
Use red slider bar for more.
AR-253 F; ACIKO Electronic (ID = 1533720) Radio
ACIKO Electronic: AR-253 F [Radio] ID = 1533720 933x1388
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-253 F, ACIKO Electronic GmbH , Frankfurt

Country:  Germany
Manufacturer / Brand:  ACIKO Electronic GmbH , Frankfurt
Year: 1974 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / UM3: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out
from Radiomuseum.org Model: AR-253 F - ACIKO Electronic GmbH ,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 82 x 142 x 38 mm / 3.2 x 5.6 x 1.5 inch
Notes

ACIKO AR-253F plus 4 diodes, metal/aluminium front, with earphone jack , carrying belt. Gross weight incl original packing 350 Gramm

Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.
