AR-505

AR-505; Aciko brand (ID = 829455) Radio AR-505; Aciko brand (ID = 829456) Radio
AR-505; Aciko brand (ID = 829460) Radio
Use red slider bar for more.

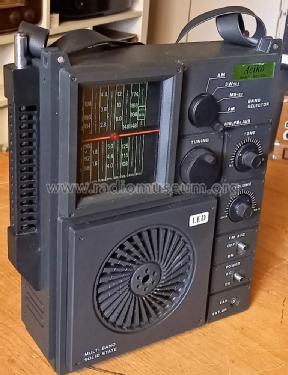

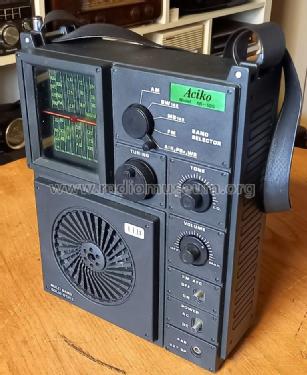

AR-505; Aciko brand (ID = 829455) Radio
Aciko brand: AR-505 [Radio] ID = 829455 608x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-505, Aciko (brand)

Country:  Japan
Manufacturer / Brand:  Aciko (brand)
Year: 1974 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: AR-505 - Aciko brand
Material Plastics (no bakelite or catalin)
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 193 x 240 x 80 mm / 7.6 x 9.4 x 3.1 inch

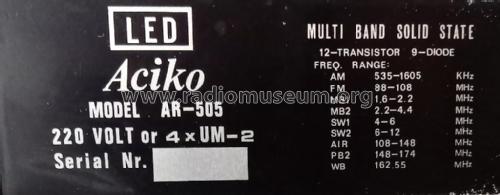

Notes Multibandgerät mit
Mittelwelle (535 - 1605 kHz),
Kurzwelle (1.6 - 12 MHz),
UKW (87.5 - 108 MHz),
Flugfunk (108 - 148 MHz),
PB (148 - 174 MHz).
Hergestellt in Hong Kong
Source of data - - Data from my own collection

Model page created by Stefan Heimers. See "Data change" for further contributors.
