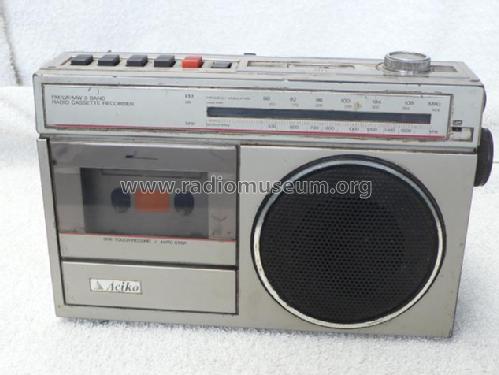

FM/LW/MW 3 Band Radio Cassette Recorder ACR318
Aciko (brand)
- Country
- Japan
- Manufacturer / Brand
- Aciko (brand)
- Year
- 1985 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 250558
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220/ 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Power out
- 0.5 W (0.7 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: FM/LW/MW 3 Band Radio Cassette Recorder ACR318 - Aciko brand
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 290 x 185 x 85 mm / 11.4 x 7.3 x 3.3 inch
- Net weight (2.2 lb = 1 kg)
- 1.3 kg / 2 lb 13.8 oz (2.863 lb)
- Price in first year of sale
- 2,800.00 pte
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
