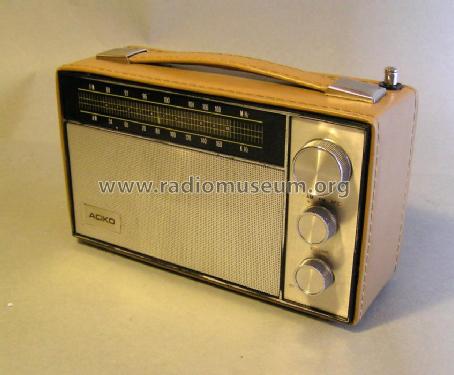

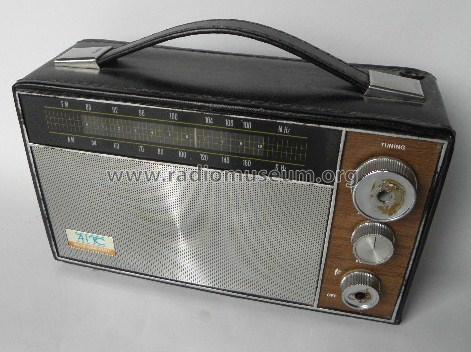

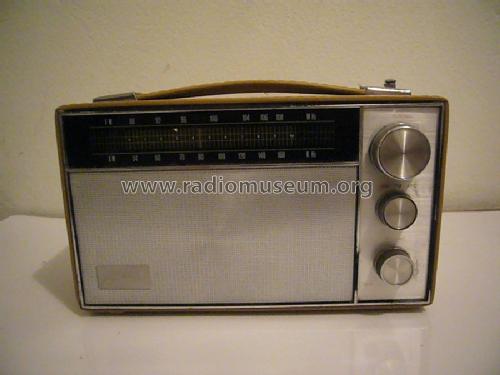

FSH-212

FSH-212; Aciko brand (ID = 1304261) Radio FSH-212; Aciko brand (ID = 615743) Radio
FSH-212; Aciko brand (ID = 653220) Radio FSH-212; Aciko brand (ID = 653218) Radio
FSH-212; Aciko brand (ID = 615744) Radio FSH-212; Aciko brand (ID = 615745) Radio
FSH-212; Aciko brand (ID = 615746) Radio FSH-212; Aciko brand (ID = 653216) Radio
FSH-212; Aciko brand (ID = 653217) Radio FSH-212; Aciko brand (ID = 653219) Radio
Use red slider bar for more.

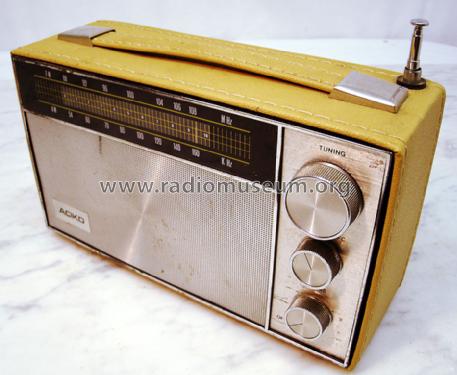

FSH-212; Aciko brand (ID = 1304261) Radio
Aciko brand: FSH-212 [Radio] ID = 1304261 933x765
Select picture or schematic to display from thumbnails on the right and click for download.
For model FSH-212, Aciko (brand)

Country:  Japan
Manufacturer / Brand:  Aciko (brand)
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-230; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: FSH-212 - Aciko brand
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 130 x 80 mm / 8.7 x 5.1 x 3.1 inch
Notes

Aciko FSH-212, FM/AM AC/DC Radio;

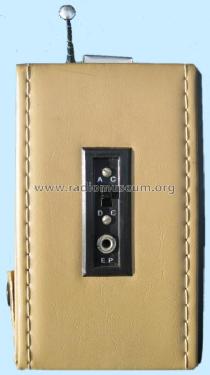

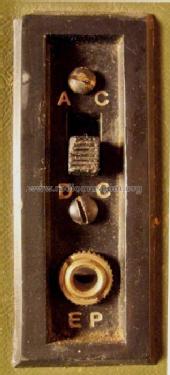

AFC, earphone jack.

See also:

Made in Hong Kong

Net weight (2.2 lb = 1 kg) 1.050 kg / 2 lb 5 oz (2.313 lb)
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
