TV-504N

TV-504N; ACIKO Electronic (ID = 2291553) Television TV-504N; ACIKO Electronic (ID = 2291554) Television
TV-504N; ACIKO Electronic (ID = 2291555) Television TV-504N; ACIKO Electronic (ID = 2291556) Television
TV-504N; ACIKO Electronic (ID = 2291557) Television
Use red slider bar for more.
TV-504N; ACIKO Electronic (ID = 2291553) Television
ACIKO Electronic: TV-504N [Television] ID = 2291553 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model TV-504N, ACIKO Electronic GmbH , Frankfurt:
Collection of Jose Martins

Country:  Germany
Manufacturer / Brand:  ACIKO Electronic GmbH , Frankfurt
Year: 1979 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 310HEB4
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
Power out
from Radiomuseum.org Model: TV-504N - ACIKO Electronic GmbH ,
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 390 x 285 x 290 mm / 15.4 x 11.2 x 11.4 inch
Notes

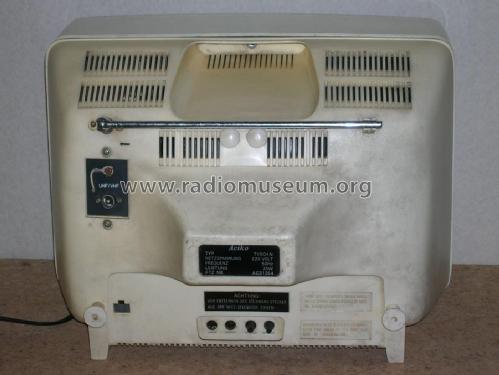

B/W TV, picture tube screen diagonal 290mm, VHF rotary selector and UHF tuner. Telescopic antenna + connection to ext. antenna.

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
