Wave's Master V7
Acora; Paris
- Country
- France
- Manufacturer / Brand
- Acora; Paris
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68715

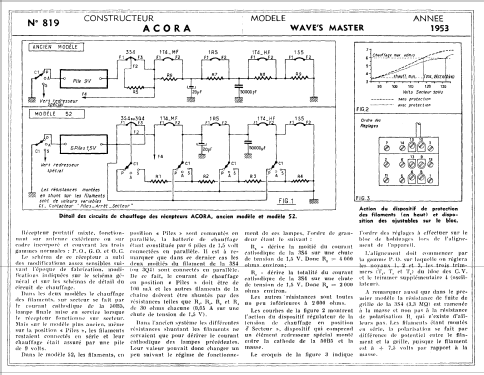

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Line / Batteries (any type) / 110; 220 / 1x 9 & 67 or 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Wave's Master V7 - Acora; Paris
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 210 x 90 x 190 mm / 8.3 x 3.5 x 7.5 inch
- Notes
-
Dial lamps: 2x 6,3 V / 0,1 A.
- Net weight (2.2 lb = 1 kg)
- 1.9 kg / 4 lb 3 oz (4.185 lb)
- External source of data
- Serge Laffont/Martin Renoth
