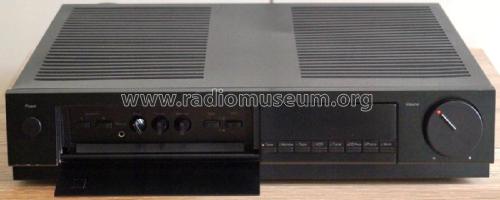

Integrated Amplifier A-07; Acoustic Research (ID = 2394734) Ampl/Mixer Integrated Amplifier A-07; Acoustic Research (ID = 2394729) Ampl/Mixer
Integrated Amplifier A-07; Acoustic Research (ID = 2394738) Ampl/Mixer Integrated Amplifier A-07; Acoustic Research (ID = 1635277) Ampl/Mixer
Integrated Amplifier A-07; Acoustic Research (ID = 1635276) Ampl/Mixer Integrated Amplifier A-07; Acoustic Research (ID = 1635278) Ampl/Mixer
Integrated Amplifier A-07; Acoustic Research (ID = 1635279) Ampl/Mixer
Use red slider bar for more.
Integrated Amplifier A-07; Acoustic Research (ID = 2394734) Ampl/Mixer
Acoustic Research: Integrated Amplifier A-07 [Ampl/Mixer] ID = 2394734 1200x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated Amplifier A-07, Acoustic Research Inc.; Cambridge, MA:
For sale on archiwum.allegro.pl offer No. 7436002821

Country:  United States of America (USA)
Manufacturer / Brand:  Acoustic Research Inc.; Cambridge, MA
Year: 1990 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / Either 60 cycles, 120V or 50 cycles, 220 - 240V or 50 to 60 cycles, 120 or 220-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Integrated Amplifier A-07 - Acoustic Research Inc.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 93 x 354 mm / 16.9 x 3.7 x 13.9 inch
Notes

Acoustic Research Stereo Amplifier Model A-07.
60 Watts typical into 8 Ohms (20 - 20000Hz, THD 0.03%)
Power Consumption 300 Watts.
Phono MM IN, Phono MC IN, CD, AUX, Tape, VCR IN


Net weight (2.2 lb = 1 kg) 8.9 kg / 19 lb 9.7 oz (19.604 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
