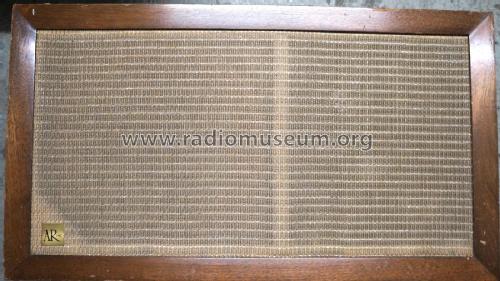

Acoustic Research: AR3 [Speaker-P] ID = 2544809 1400x789
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR3, Acoustic Research Inc.; Cambridge, MA:
Eigenes Foto

Country:  United States of America (USA)
Manufacturer / Brand:  Acoustic Research Inc.; Cambridge, MA
Year: 1963/1964 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: AR3 - Acoustic Research Inc.;
Material Wooden case
Dimensions (WHD) 355 x 635 x 305 mm / 14 x 25 x 12 inch
Notes 3-Wege-HiFi-Box, Impedanz 4 Ohm, Frequenzbereich 20-20000Hz.
Bestückung: 1 Tieftöner 305mm, 1 Mitteltöner 50,8mm und 1 Hochtöner 35mm.
Frequenzweiche: Übergänge bei 1000Hz und 7500Hz.
Volumen: 48,1 Liter.
Net weight (2.2 lb = 1 kg) 27 kg / 59 lb 7.5 oz (59.471 lb)
Price in first year of sale 1'298.00 DM
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
