19

• Country
• Canada

• Manufacturer / Brand
• Addison Industries, Ltd.;Toronto

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93055

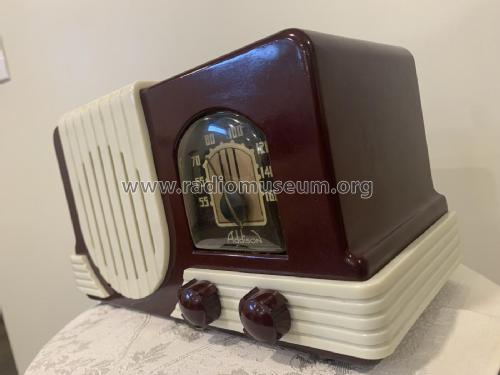

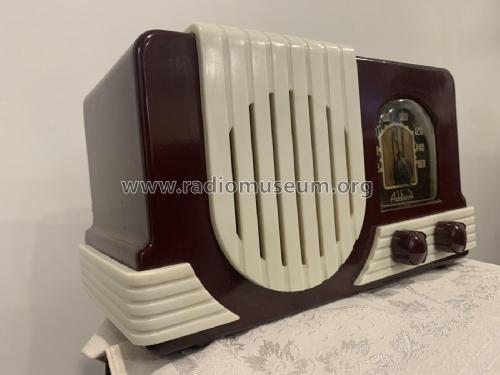

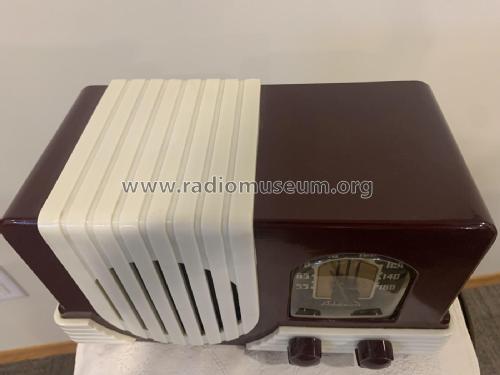

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

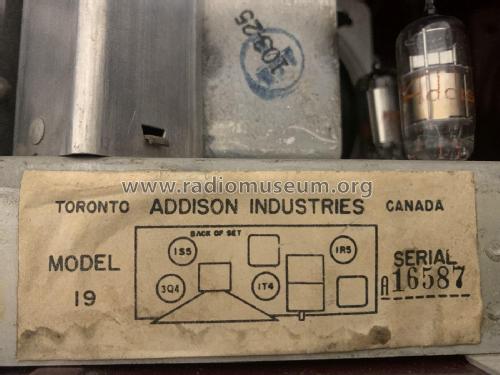

• Valves / Tubes
• 1R5 1T4 1S5 3Q4

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 1.5; 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 19 - Addison Industries, Ltd.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Literature/Schematics (1)
• Radio College of Canada, Individual Circuit Service, 1927-1953

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
