• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 178921
    • alternative name: Continental Radio & TV

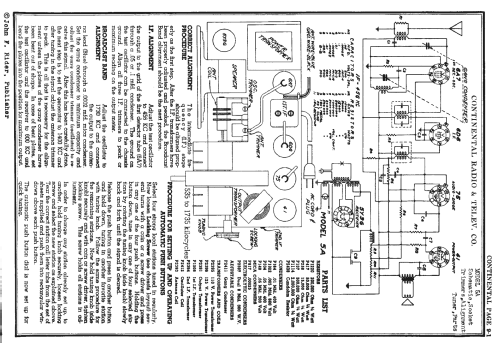

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 115-5A Ch= 5A - Admiral brand Continental

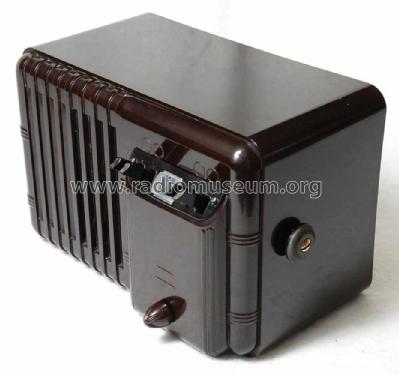

  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 11 x 6.75 x 7 inch / 279 x 171 x 178 mm
  • Notes
  • Color: brown. Pushbutton tuning.
    Stein lists it erroneously as a 113-5A. The black version is 114-5A, the ivory one is 113-5A. See also there.
  • Price in first year of sale
  • 17.00 $
  • Mentioned in
  • -- Original prospect or advert (Admiral ad in Radio Retailing)
  • Author
  • Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
