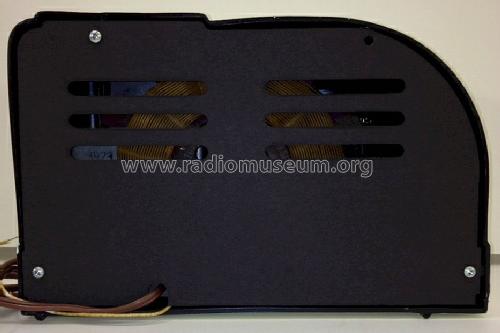

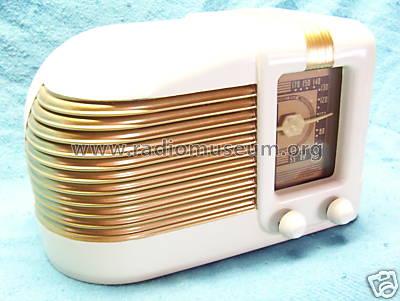

Admiral brand: 15 Ch= D5 [Radio] ID = 2279532 1400x1047
Select picture or schematic to display from thumbnails on the right and click for download.
For model 15 Ch= D5, Admiral (brand) Continental Radio & Television Co.; Chicago, IL:
American Radio Design Greg Mercurio

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SQ7 12SK7 35Z5 50L6
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 15 Ch= D5 - Admiral brand Continental
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Built in loop antenna
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Literature/Schematics (1) 20-09-1941 Collier's Magazine advertising
Literature/Schematics (4) Table Top Radios Vol. 4 Stein 2003 (page 35.)
