• Year
  • 1957/1958
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 83906
    • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • from Radiomuseum.org
  • Model: 373 Ch= 4T2 - Admiral brand Continental
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes

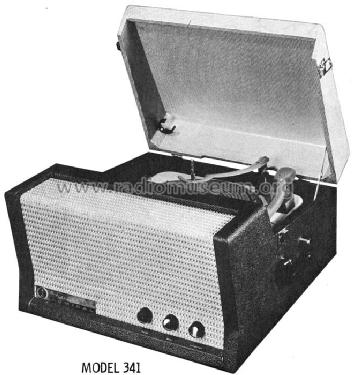

  • The Admiral models 341 (black and gold) and 347 (tan and white) are "portable models" with 2 loudspeakers (3,5" and 8") and the models 362 (color mahogany), 363 (blond), 364 (sierra), 366 (color ?) are models with brass legs and 3 loudspeakers (3,5"; 4" and 8") and 372 (mahogany) and 373 (blond) are cabinet models with two speakers (3.5" and 12"). Model 341 uses different knobs than the rest. SAMS does not list model 366 on the cover but mentiones it inside.
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 18, 1958
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
