For model 4207 Ch= A10, Admiral (brand) Continental Radio & Television Co.; Chicago, IL:

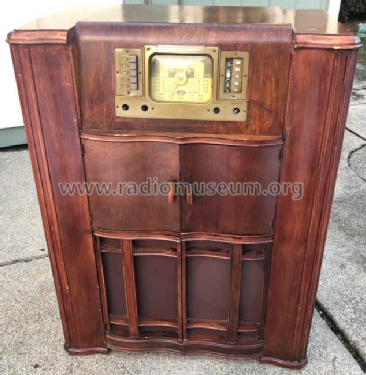

From Facebook Market Place

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6SK7 6SA7 6SK7 6SK7 6SQ7 6SQ7 6SK7 6K6 6K6 5Y3
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 4207 Ch= A10 - Admiral brand Continental
Material Wooden case
Shape Console with Push Buttons.
Notes Airplane Dial. Built in loop antenna for BC. Triple-tuned RF converter. Hand-rubbed walnut cabinet. Doors.
Price in first year of sale 129.95 $
Source of data Collector's Guide to Antique Radios (7th Edition)
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
Mentioned in Pre-War Consoles

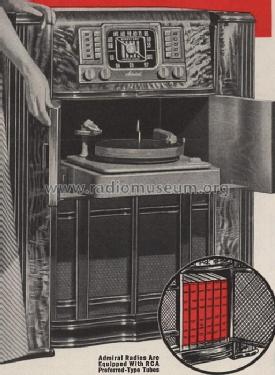

Literature/Schematics (1) 20-09-1941 Collier's Magazine advertising
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (August 1941, February 1942.)

Model page created by Vitor Oliveira. See "Data change" for further contributors.
