Portable 4AZS

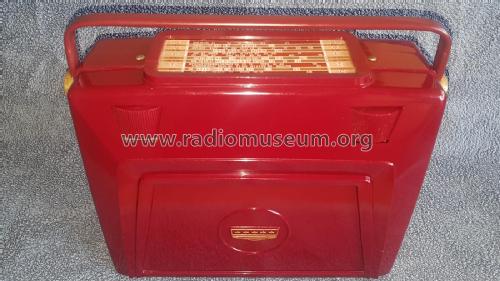

Portable 4AZS; Admiral of Australia (ID = 2094851) Radio Portable 4AZS; Admiral of Australia (ID = 2356067) Radio
Portable 4AZS; Admiral of Australia (ID = 2356068) Radio Portable 4AZS; Admiral of Australia (ID = 2356069) Radio
Use red slider bar for more.
Portable 4AZS; Admiral of Australia (ID = 2094851) Radio
Admiral of Australia: Portable 4AZS [Radio] ID = 2094851 1400x1418
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable 4AZS, Admiral of Australia, Bankstown

Country:  Australia
Manufacturer / Brand:  Admiral of Australia, Bankstown
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 90 & 7.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Portable 4AZS - Admiral of Australia,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

This portable radio came in any of the following 5 colours: Burgundy, Beige, Forest Green, Light Grey and Tan.  All had a gold trim.

See also Admiral 4AZ for battery/mains operation.

Price in first year of sale 26.25 AUS £
Literature/Schematics (1) J.R. Publications Radio Service Handbook (R.V. Series Group 1, September 1966, Page A152.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
