For model 531 Ch= 8L1, Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2N140 2N411 2N139 2N139 2N406 2N406 2N270 2N270
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / C: 8 x 1.5 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 531 Ch= 8L1 - Admiral brand Continental
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 200 x 95 mm / 9.4 x 7.9 x 3.7 inch
Notes

The Admiral Model 531 is a battery operated transistorized Portable AM Receiver.

Front speaker 4-inch, rear speaker 3.5-inch.
Material: Vinyl covered metal.

See also the Canadian model 531X.



Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)
Price in first year of sale 40.00 $

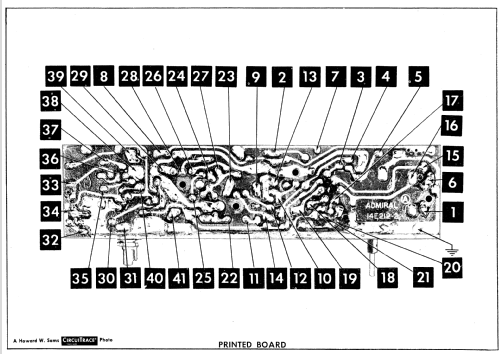

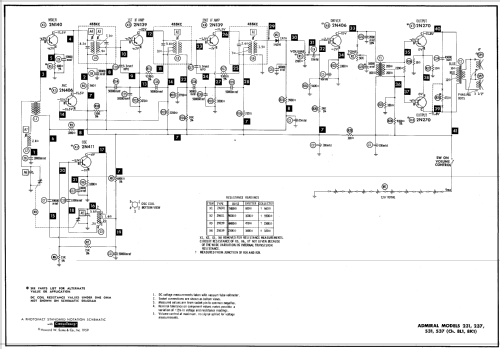

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 2-59, Set 431, Folder 3)

Model page created by Egon Penker. See "Data change" for further contributors.
