- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 70434
-
- alternative name: Continental Radio & TV

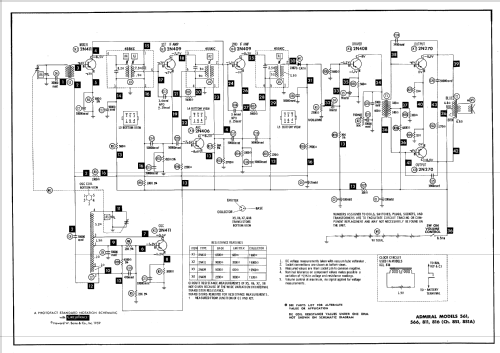

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 561 Ch= 8S1 - Admiral brand Continental
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- Price in first year of sale
- 30.00 $
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 19, 1959
- Literature/Schematics (1)

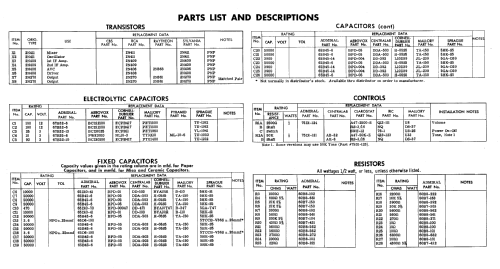

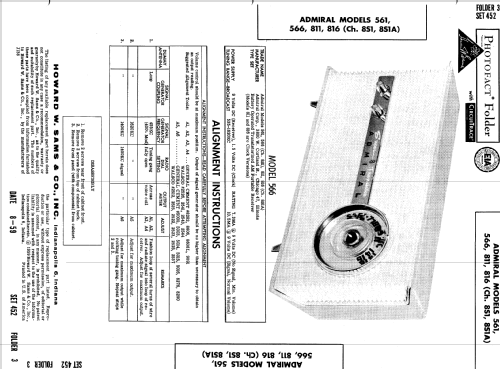

- Photofact Folder, Howard W. SAMS (Date 8-59, Set 452, Folder 3)
- Author
- Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
