6T02 Ch= 5B1; Admiral brand (ID = 2406689) Radio

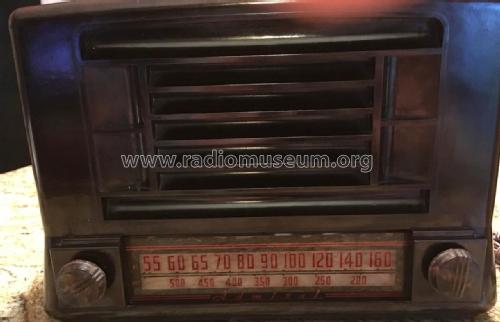

Admiral brand: 6T02 Ch= 5B1 [Radio] ID = 2406689 1220x787

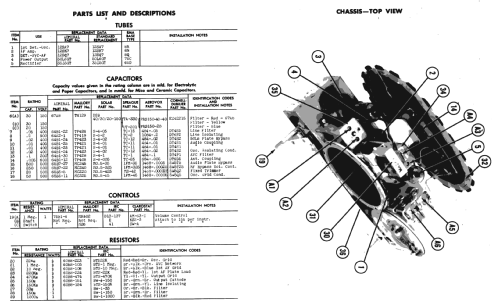

Select picture or schematic to display from thumbnails on the right and click for download.
For model 6T02 Ch= 5B1, Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out
from Radiomuseum.org Model: 6T02 Ch= 5B1 - Admiral brand Continental
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Built in loop antenna. Sams photofact folder 461-20 date 6-46 features the Admiral models 6T02 and 6T04 as the same schematic.
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (461-20 6-1946)
Literature/Schematics (2) Machine Age to Jet Age II (page 49.)
